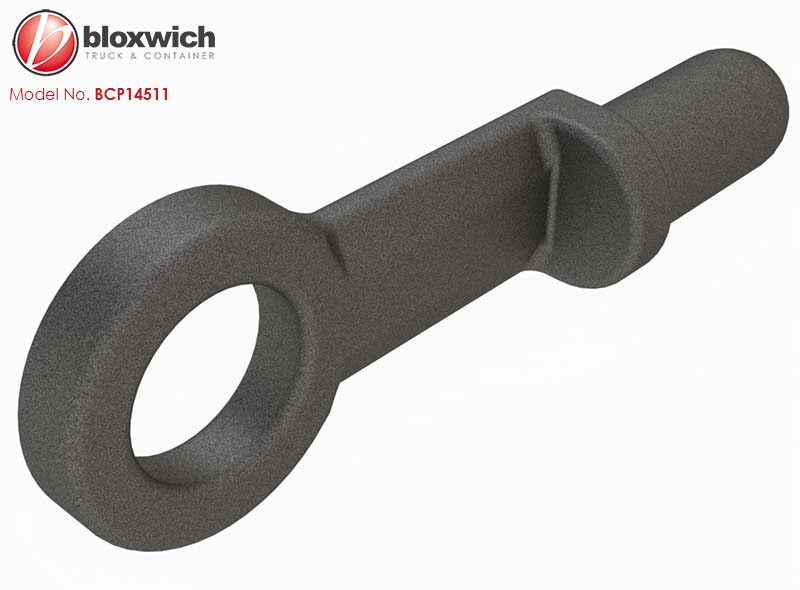

BCP14511 Gudgeon Pin
BCP14511 Gudgeon Pin - view 1DrawingBCP14511 Gudgeon Pin - view 3

BCP14511 Gudgeon Pin

Price: £3.00 (ex VAT)

Description
Description


Bloxwich Standard Design: Gudgeon Pin

Supplied in: Mild steel self colour

Use: Along with BCP17022 to secure tailboard lugs etc. Can also be used with Ø22, Ø27 & Ø34mm tube to make vehicle tubular retention or fall rails, container door stays or telescopic and fixed load poles.

Weight: 220 g  Commodity Code 830249  GTIN 5060345314588

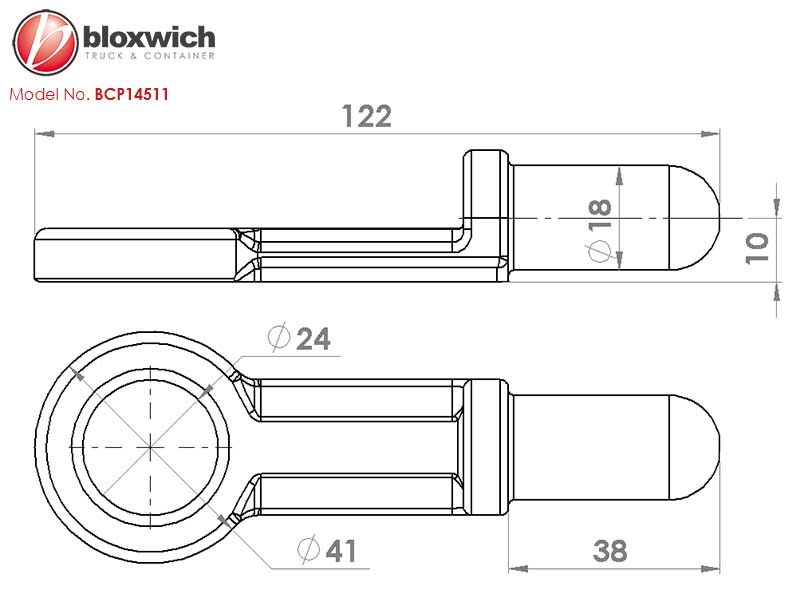

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
