Bloxwich Standard Pat Design SWL 12.0 T* Lashing Back Plate

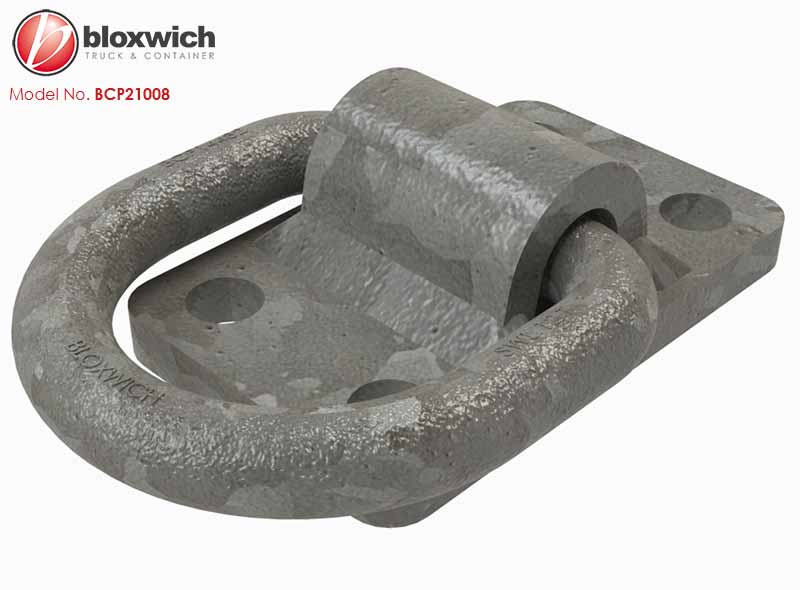

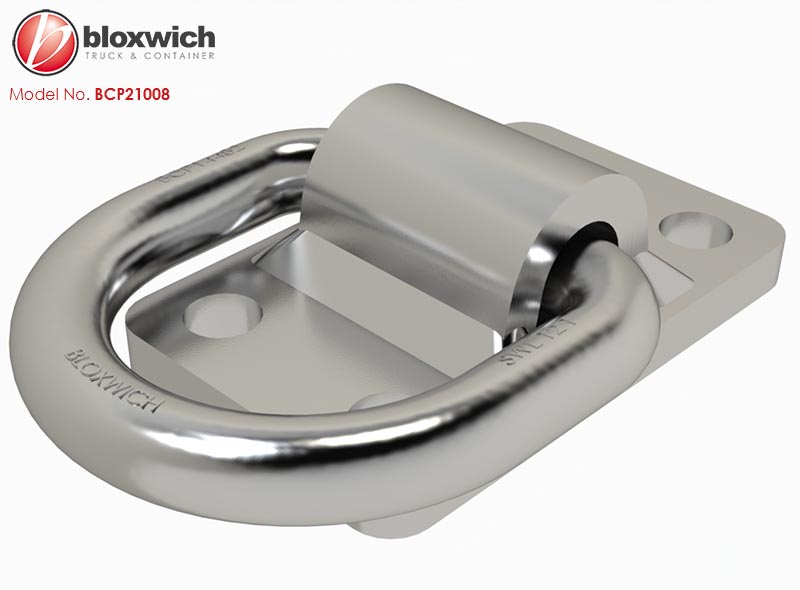

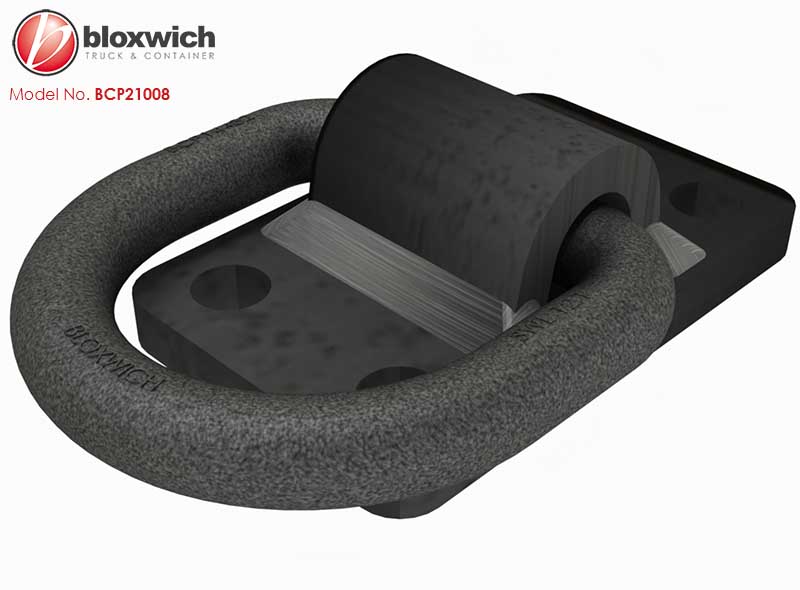

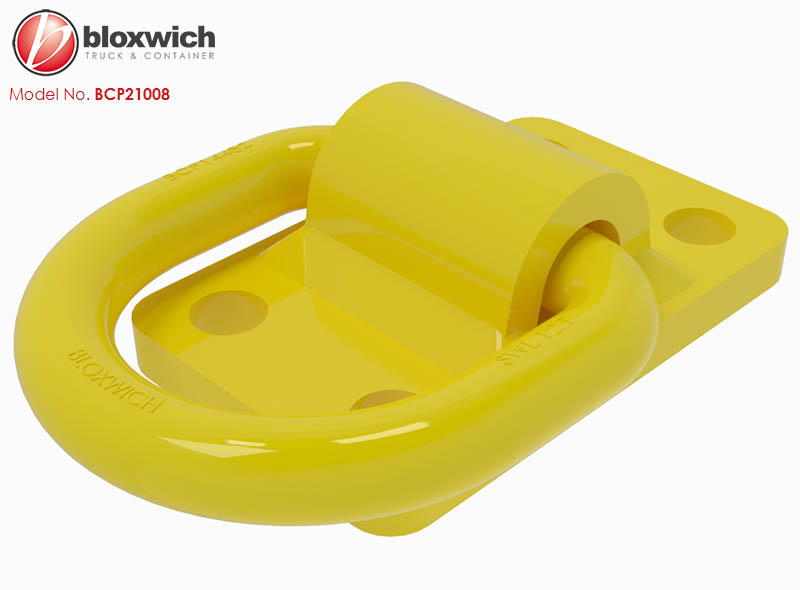

Supplied in: Self colour, zinc plated, galvanized or powder coated
Use: Standard forged steel lashing ring BCP14482-R and mild steel back plate provides a bolt on lashing ring assembly on standard chassis 100mm x 50mm centres meaning these can be bolted onto vehicles temporarily or permanently to secure them for sea transport etc
Weight: 2.2 kg Commodity No 830249 GTIN 5060345316513
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

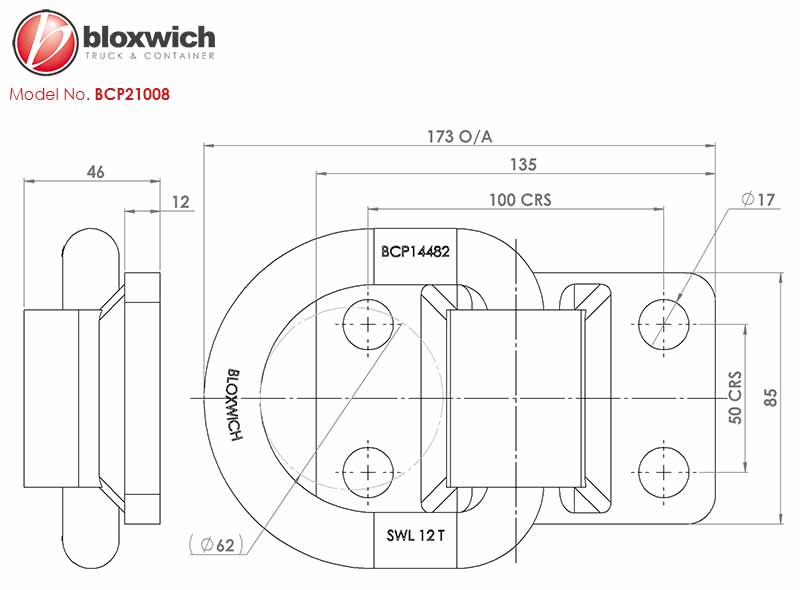

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
