Bloxwich Standard Patent Design: BCP14489-R SWL 500kg* Lashing Ring

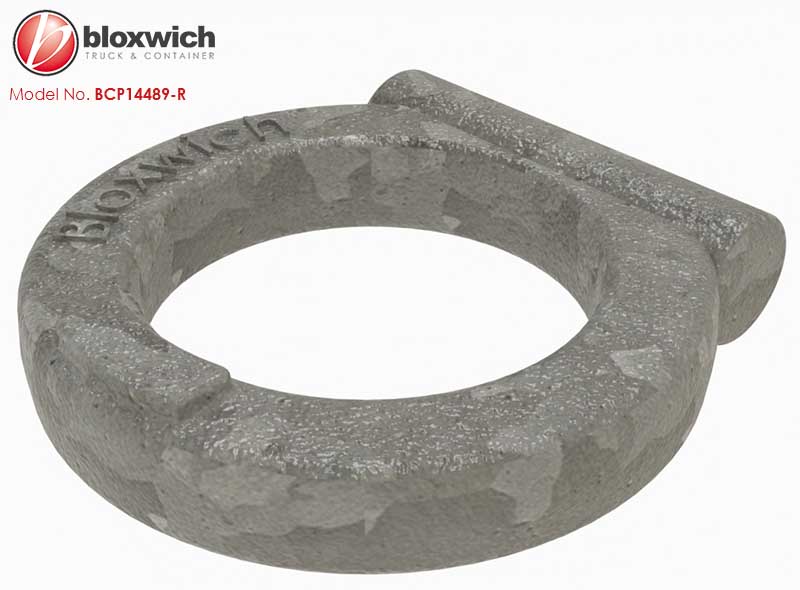

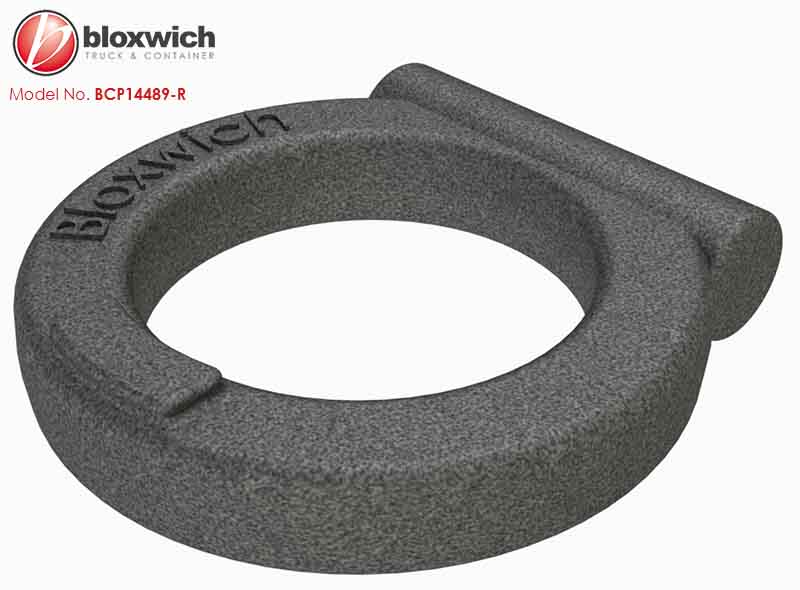

Supplied in: Self colour or galvanised

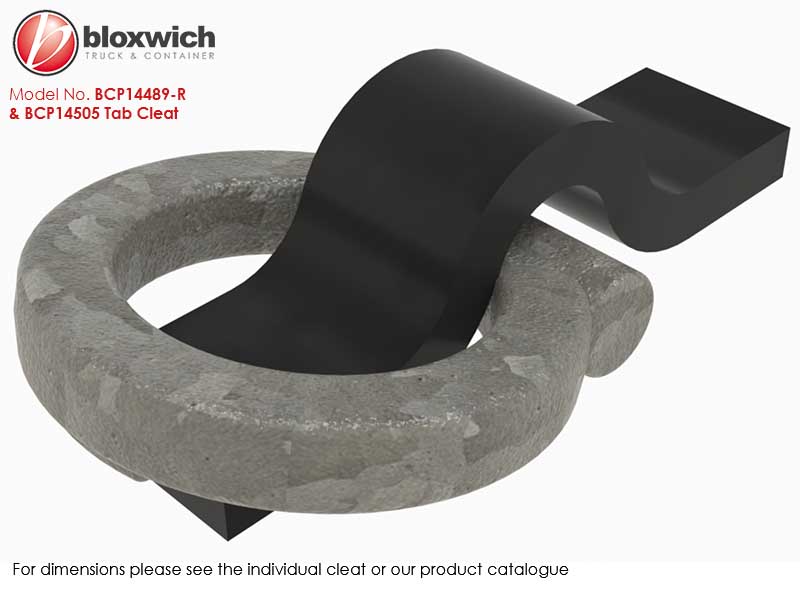

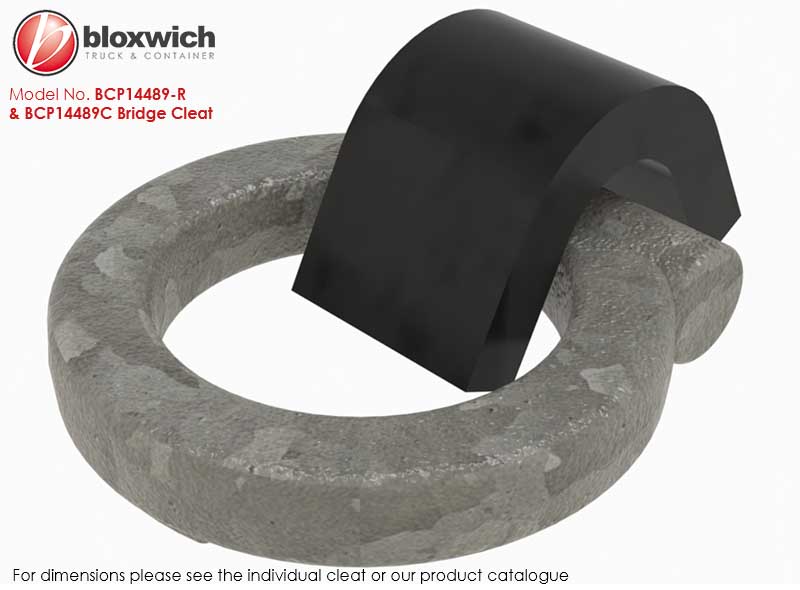

Use: Based on the 22885 but slightly bigger this standard forged steel lashing ring is for use with Bloxwich tab, bridge or bolt on cleats (where available)
Weight: 160 g Commodity No 830249 GTIN 5060345315196
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

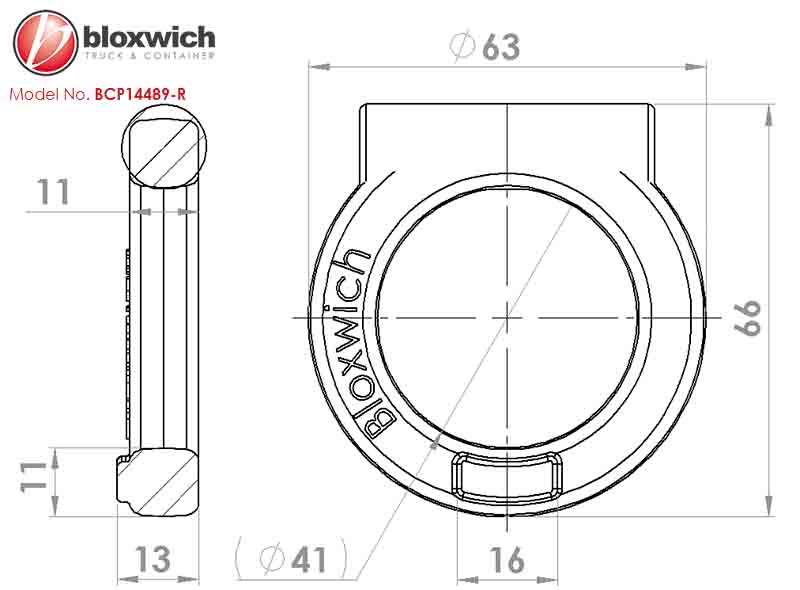

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
