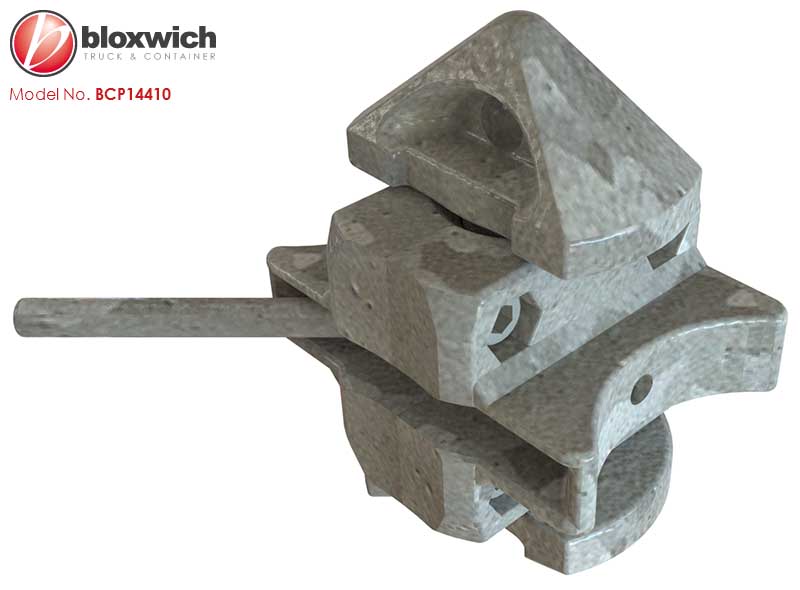

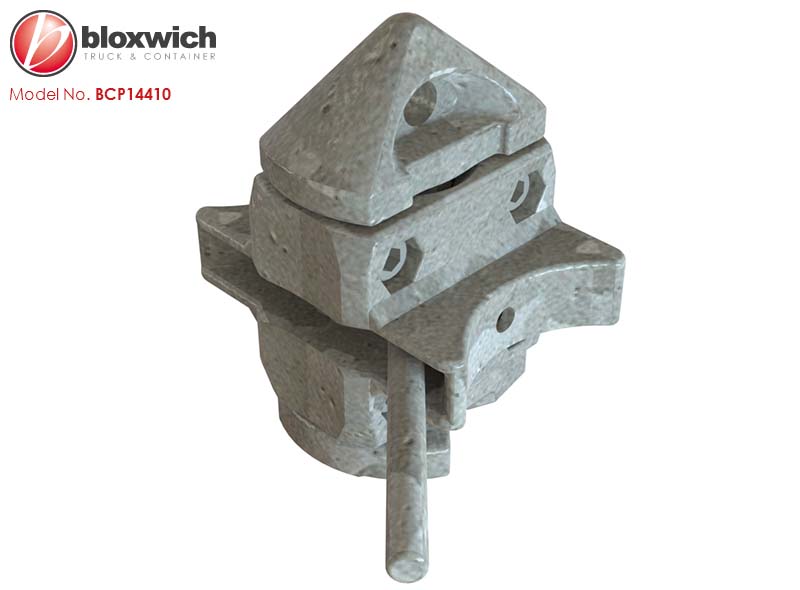

BCP14410 Marine Twist Lock

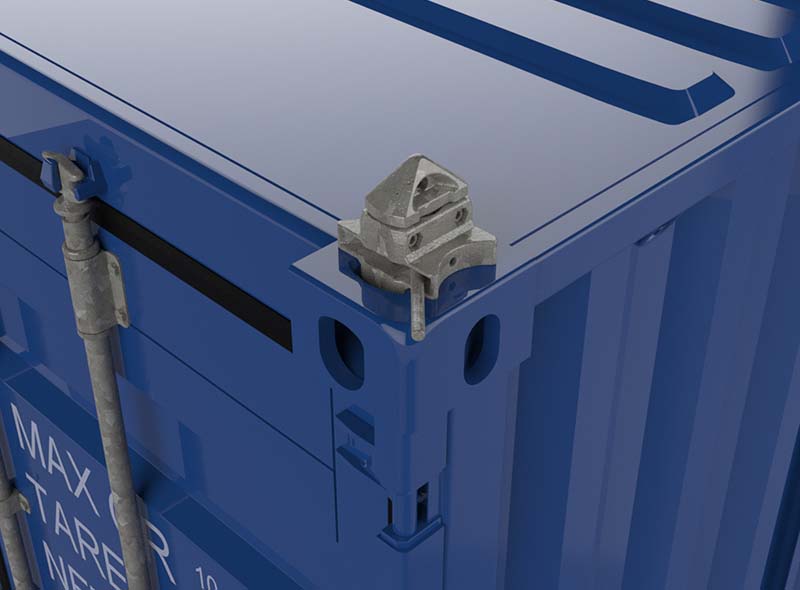

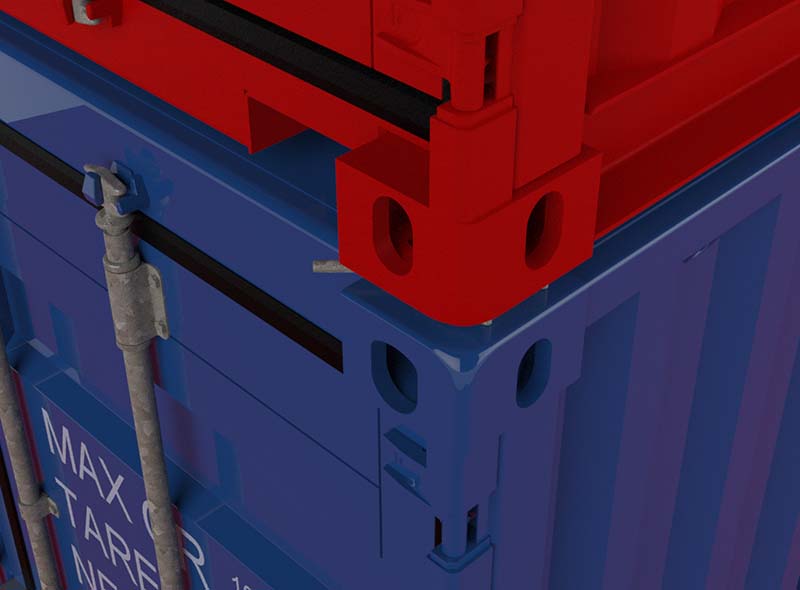

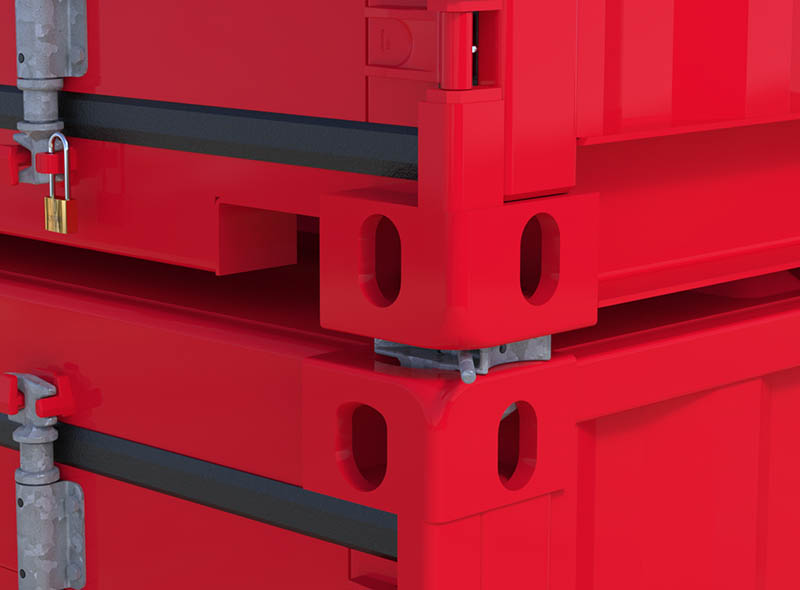

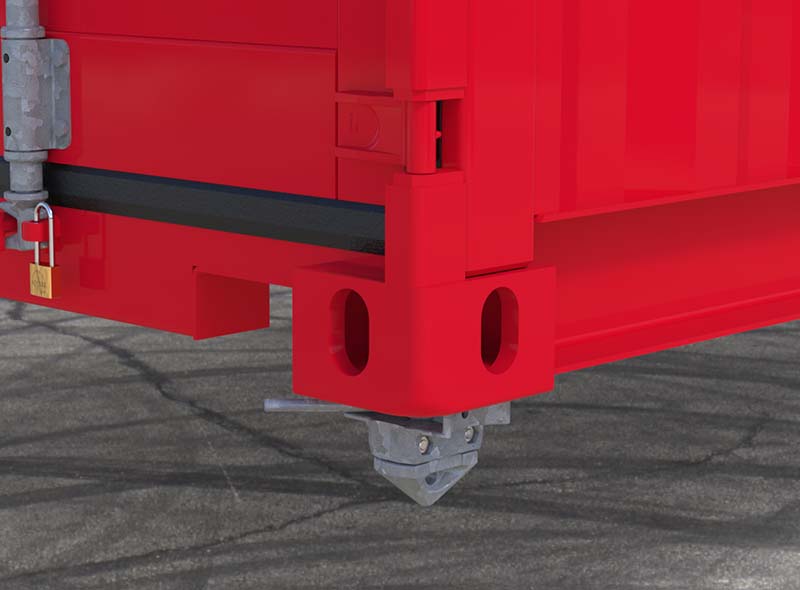

In position for container to be placed ontopDrawingIn position to be fitted to container corner casting belowLocked position (left hand locked)In position for container to be placed ontopLocked position (left hand locked)In position for container to be placed ontop of another containerLocked position (left hand locked) with the twistlock fitted the other way up

BCP14410 Marine Twist Lock

Price: £21.10 (ex VAT)

Description
Description


Bloxwich Standard Product: Marine Twist Lock, MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)

Supplied in: Hot dip galvanised finish

Use: For stacking and locking ISO containers together through their corner castings. Left hand locking, high tensile steel locking pin and cast housing. Manual intermediate twistlock suitable for securing container to container or container to deck.

Shipping containers are designed to be stacked on land and on container vessels but even on land it is necessary to lock them together on sites where there may be susceptible to high winds or impact from vehicles. These marine twistlocks are certified for use on container vessels but are also ideal for building sites and as part of temporary offices etc.

Weight: 4.5 kg  Commodity Code 830249  GTIN 5060345310672

Certification
Certification


Bloxwich can supply a copy of the DNV GL type approval certificate

Operating Instructions
Operating Instructions


Click HERE to download the operating instructions

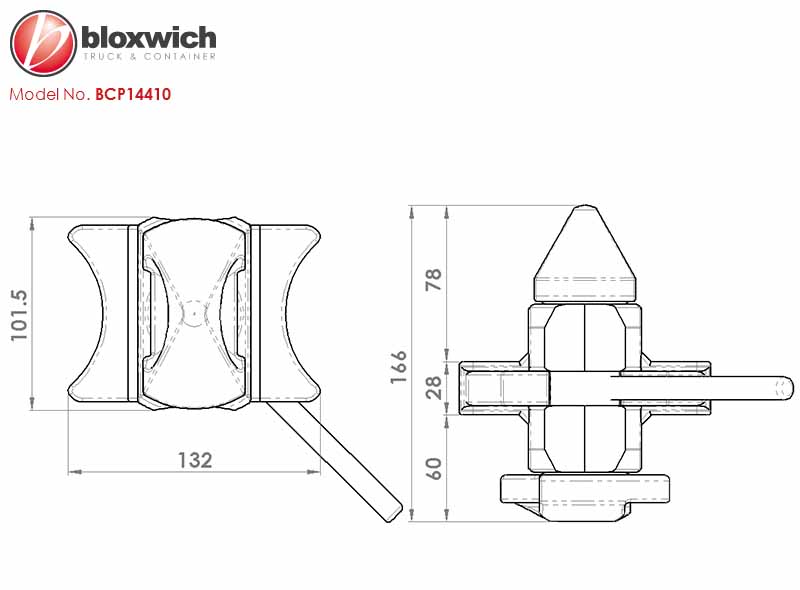

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
