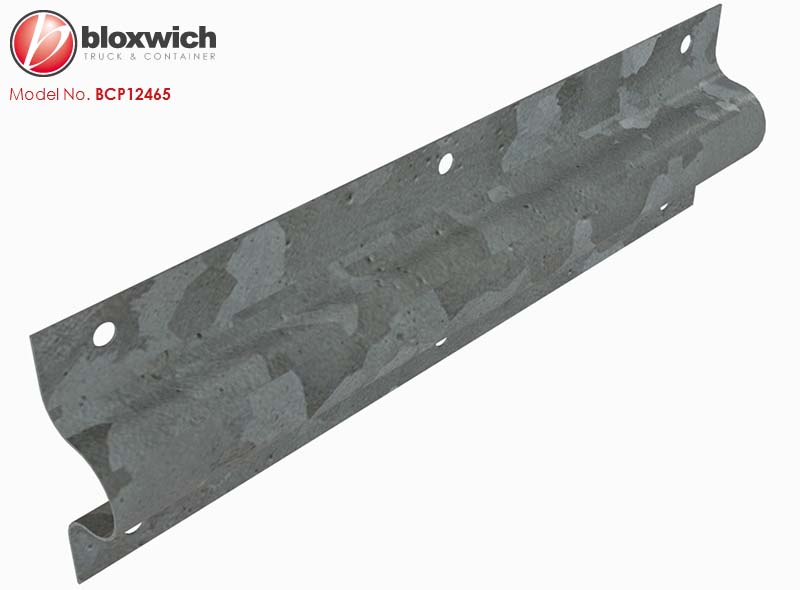

BCP12465 Mudguard Support Bracket
BCP12465 Mudguard Support Bracket - view 1Drawing

BCP12465 Mudguard Support Bracket

Price: £2.05 (ex VAT)

Description
Description


Bloxwich Standard Pat Design: Mudguard Support Bracket

Supplied in: Galvanised

Use: For use with any Ø34 tube mud wing stay and backing plate

Weight: 550 g  Commodity Code 830249  GTIN 5060345313079

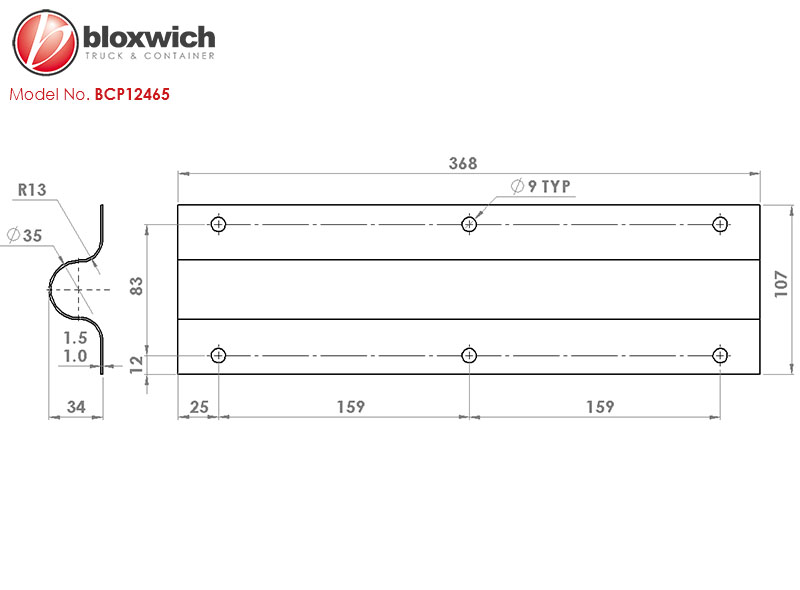

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
