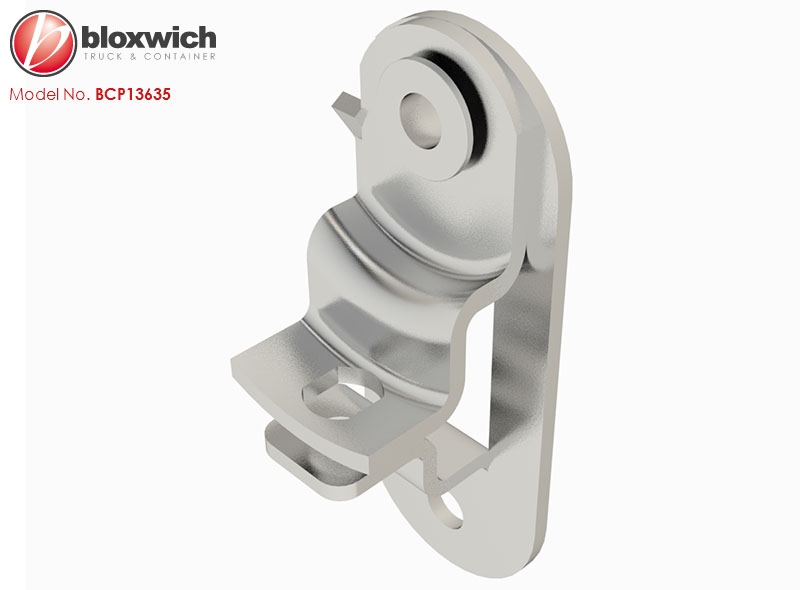

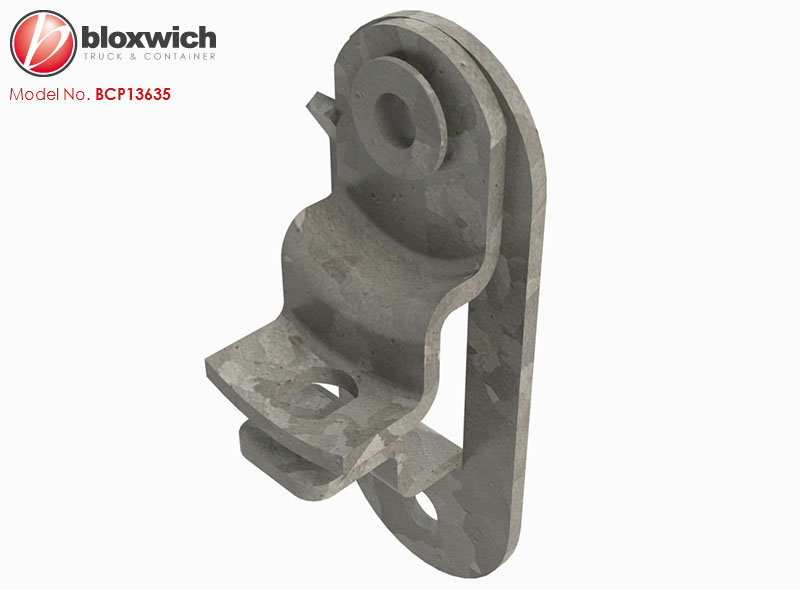

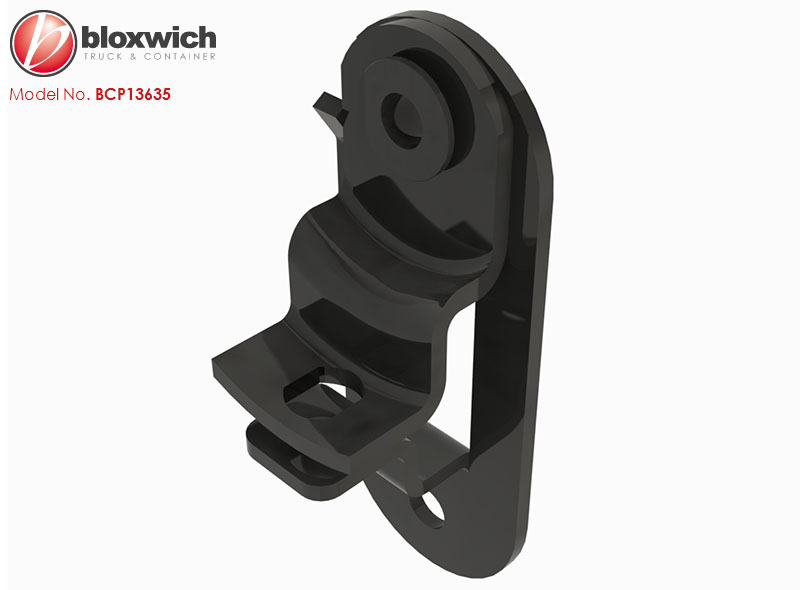

Bloxwich Standard Patent Design: Mild Steel Door Handle Retainer Kit
Supplied in: Self colour, zinc plated or galvanised

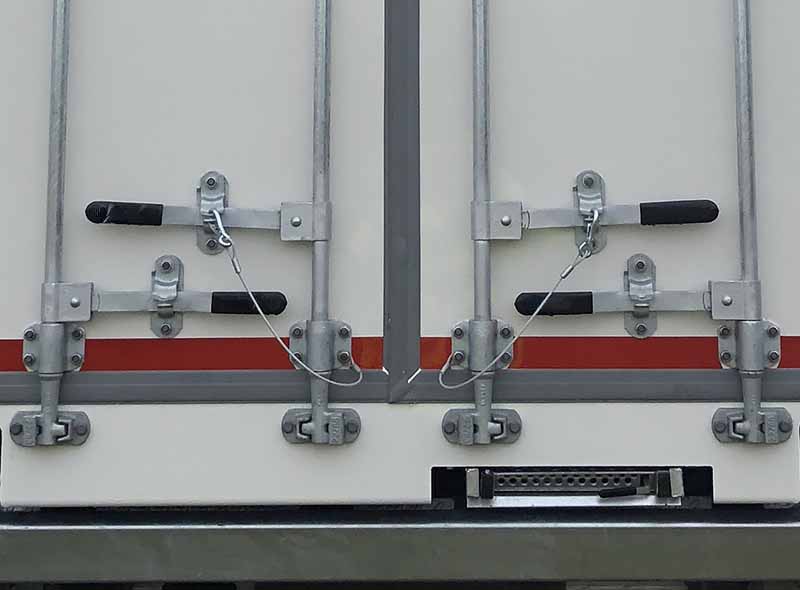

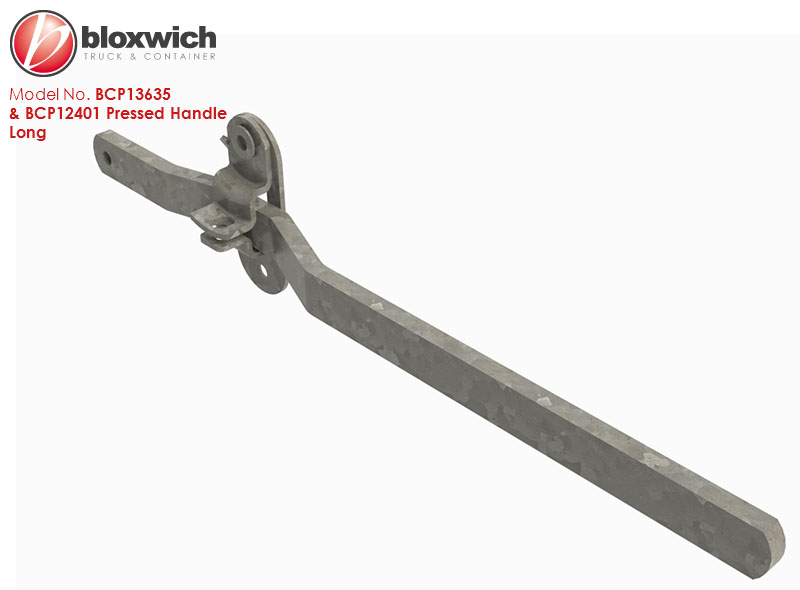

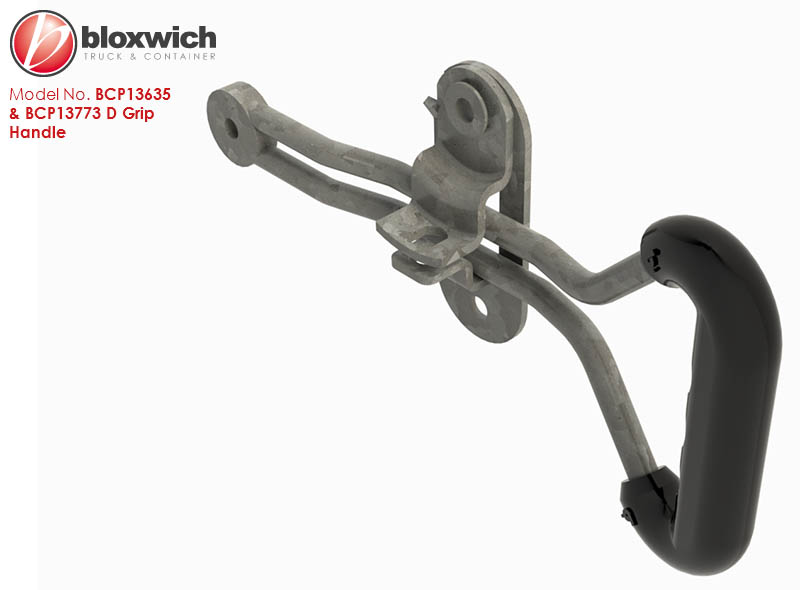

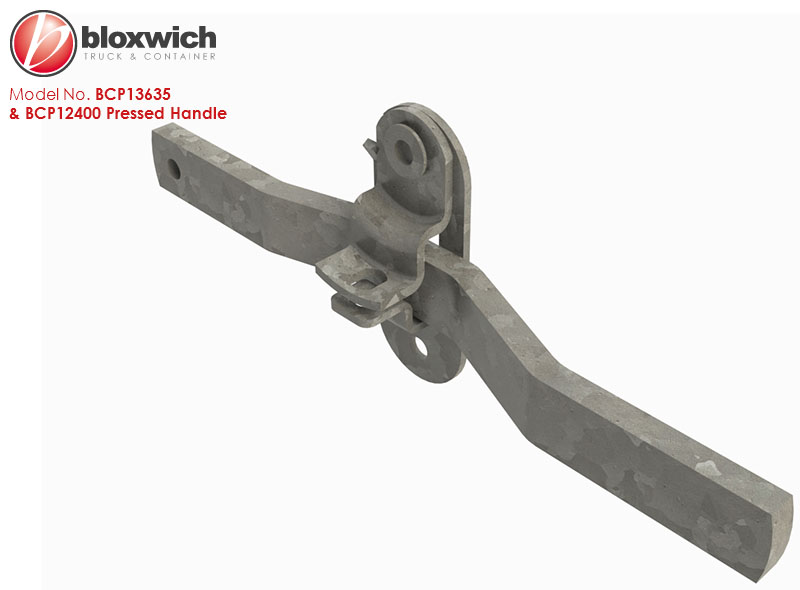

Use: Bolt/weld-on door handle retainer assembly for securing the BCP12400 pressed or BCP13773 D grip handles in the closed position
Weight: 297 g Commodity Code 830249 GTIN 5060345311204
Bush: BCP12427 Catch: BCP12399 Retainer: BCP12398
Contains 1 M10 x 30 set screw (BCP14886), 1 M10 x 35 set screw (BCP14887), 2 flat washers (BCP14885) & 2 nyloc nuts (BCP14884/G)
Click

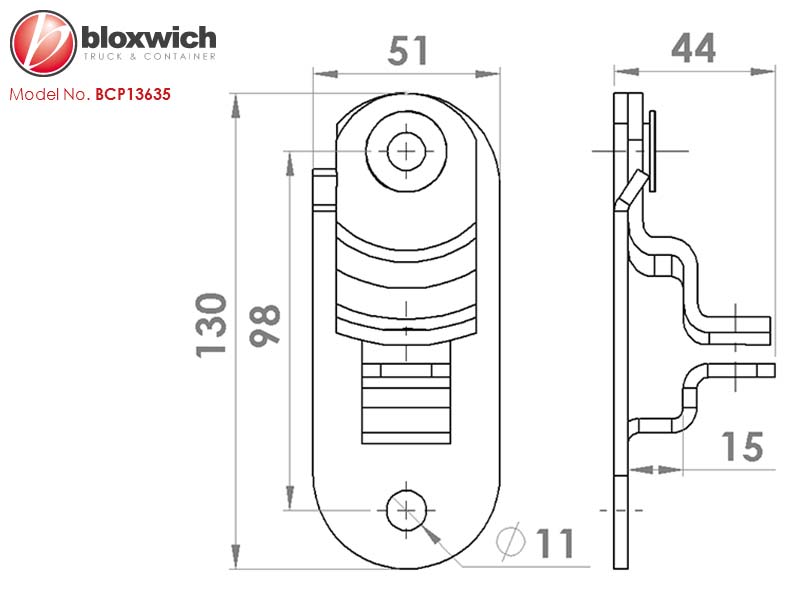

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
