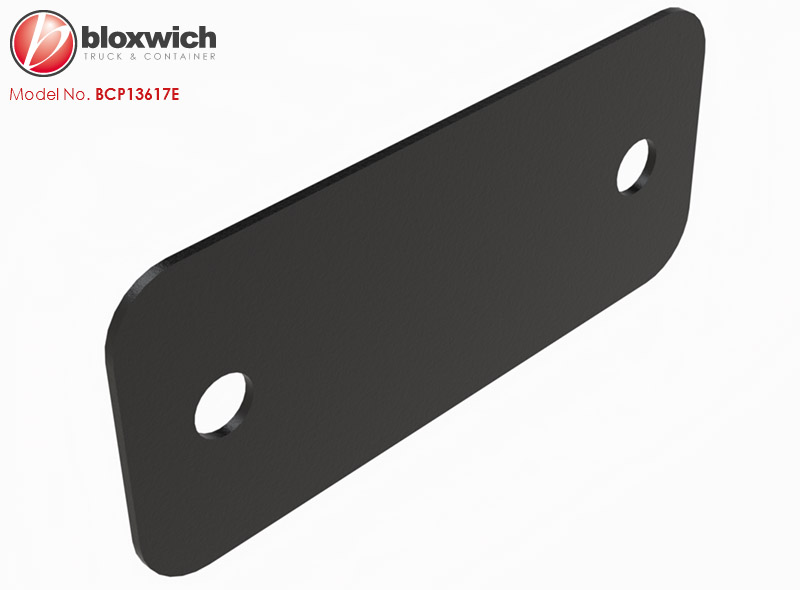

Bloxwich Standard Product: BCP13617E Bearing Bracket Outer Small Gasket
Supplied in: EPDM Rubber

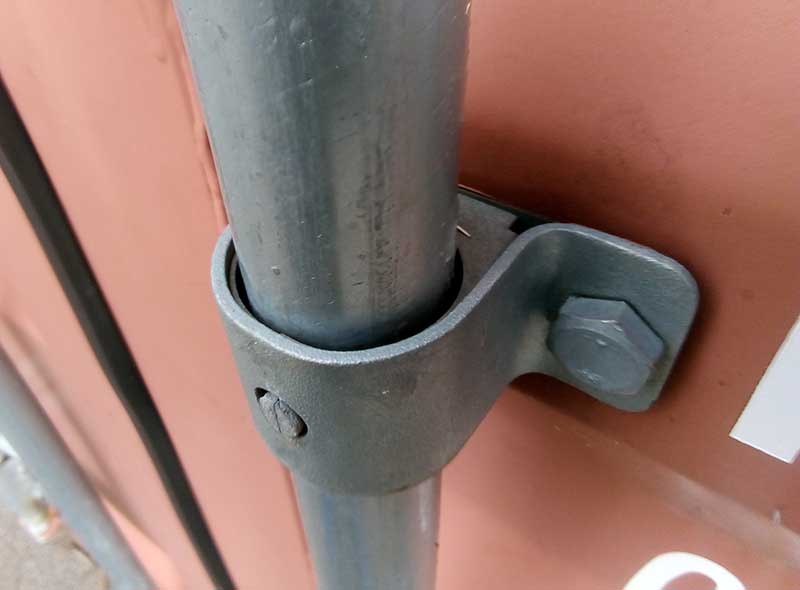

Use: On BC(S)P13507 bearing brackets (part of B2566, BE2566M, BS2566, BS2566M & BS3566 door gear) to prevent door componentry from 'in service' abrasion with door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. 1mm version for flush door panels and 4mm version for use where door panels are inset by 3mm from their frames. Others sizes available on request
Weight: 5/20 g Commodity No 400829 GTIN 5060345314397
Originally developed decades ago and now reintroduced by request

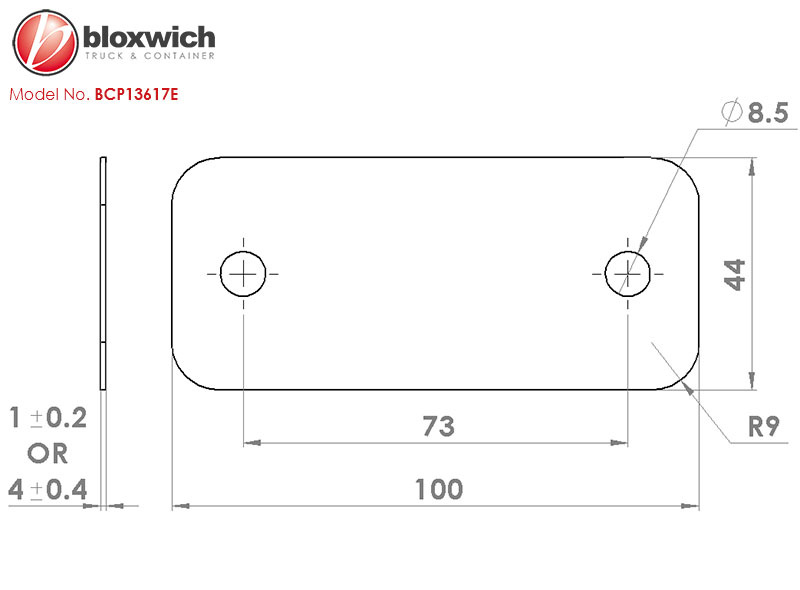

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
