Bloxwich Standard Patent Design: Mild Steel Bolt on Corner Hinge Bracket 64mm (Offset)

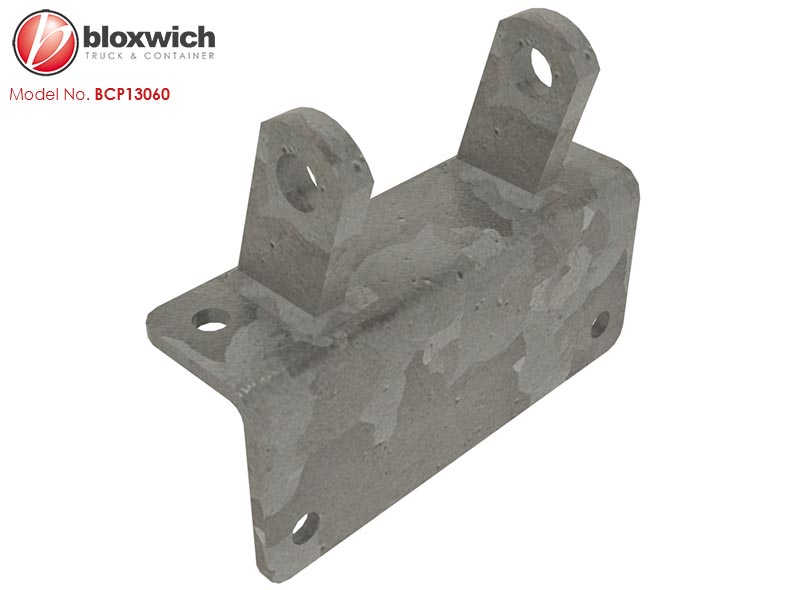

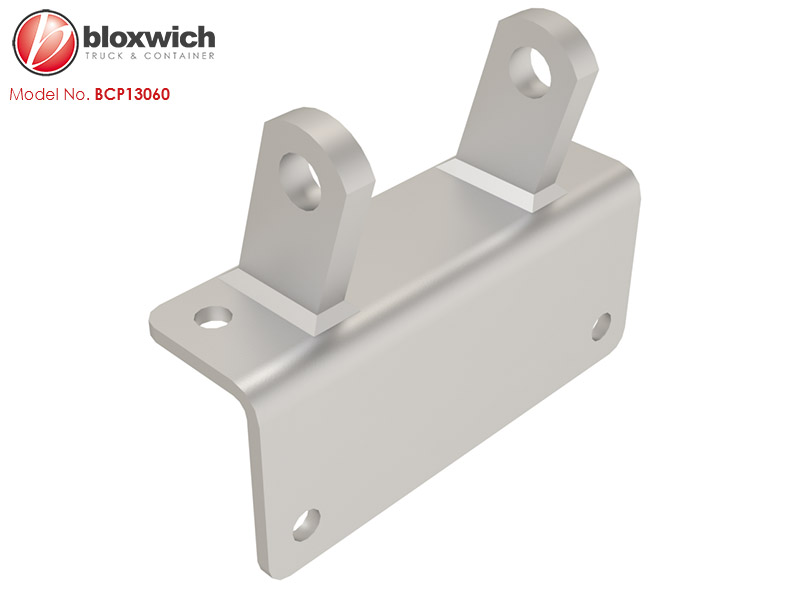

Supplied in: Zinc plated or galvanised
Use: Pivot hole size to suit 1/2" bolt or Ø12.7 hinge pin. Side fixing holes add strength particularly when fitted to wooden or aluminium corner posts.
Weight: 500 g Commodity No 830249 GTIN 5060345316391
Click

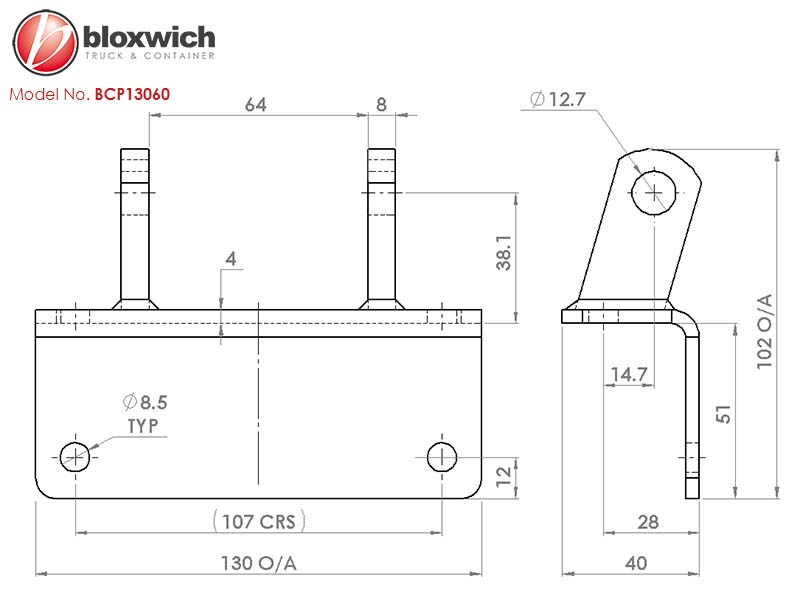

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
