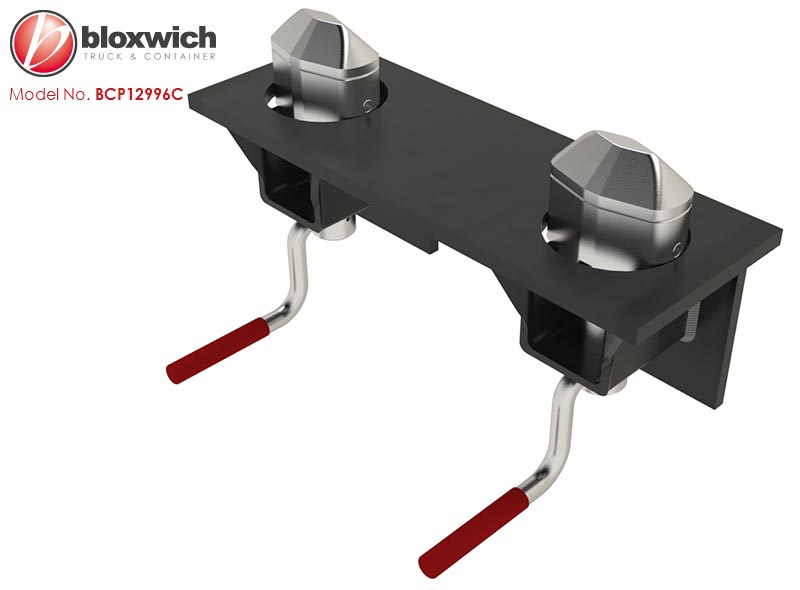

Bloxwich Standard Product: Double Retractable Twistlock, Cranked Levers
Supplied in: Mild steel plate-work self colour, zinc finish levers and barrels and red nylon lever grips
Use: Weld on double retractable twistlock with cranked levers to give more room for operation. 279mm centres allow for fitment of interconnected 10' containers. Handles are secured in the locked positions by spring loaded indexing on the shaft.
Weight: 15.8 kg Commodity Code 830249 GTIN 5060345312423
Click

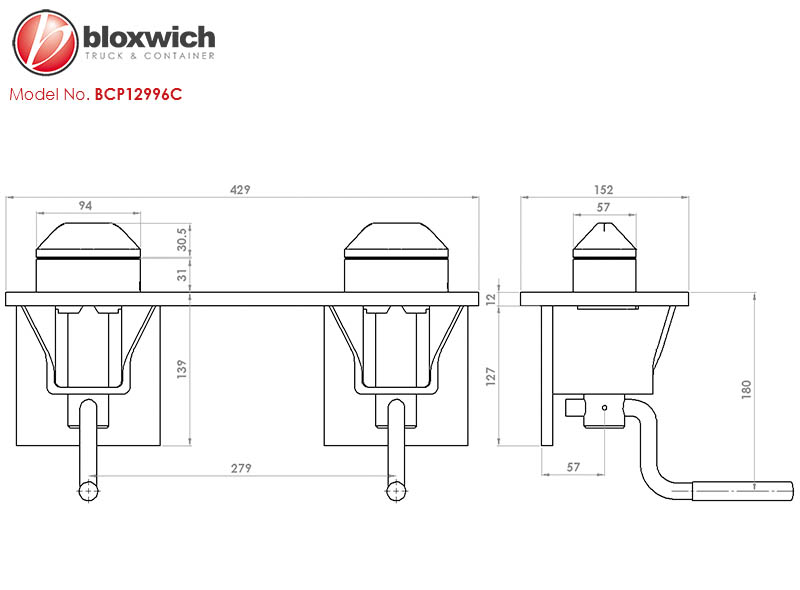

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
