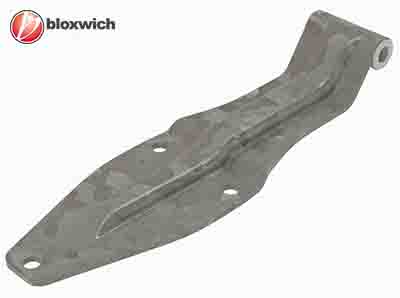

BCP12594BOGDOP Mild Steel Pressed Hinge 295mm
BCP12594BOGDOP Mild Steel Pressed Hinge 295mm - view 1DrawingBCP12594BOGDOP Mild Steel Pressed Hinge 295mm - view 3BCP12594BOGDOP Mild Steel Pressed Hinge 295mm - view 4

BCP12594BOGDOP Mild Steel Pressed Hinge 295mm

Price: 3.96 (ex VAT)

Description
Description


REDUCED TO CLEAR, BIG PART NUMBER, SMALL PRICE

Bloxwich Standard Patent Design: Mild Steel Pressed Hinge 295mm

Supplied in: Mild steel galvanised

Use: Bolt-on design, bushed to suit M12 bolt or Ø12 stainless steel hinge pin. B=Ø10.5 holes, O=No logo, G=Galvanised, D=BCP12456 Ø12mm bushes, OP=Old profile. Due to a manufacturing error, we accidentally made thousands of these hinges with old profile tooling meaning they are slightly different to the current BCP12594 hinges. To save time the differences are that this hinge is 4mm shorter and the 90mm wide area is slightly longer but that's it! These are new hinges made with old tooling and to avoid confusion these are reduced to clear. Our mistake can be your gain with this low price.

Weight: 620 g   Commodity No 830210  GTIN5060345310405

FOR LARGE QUANTITIES PLEASE CONTACT US FOR A QUOTE

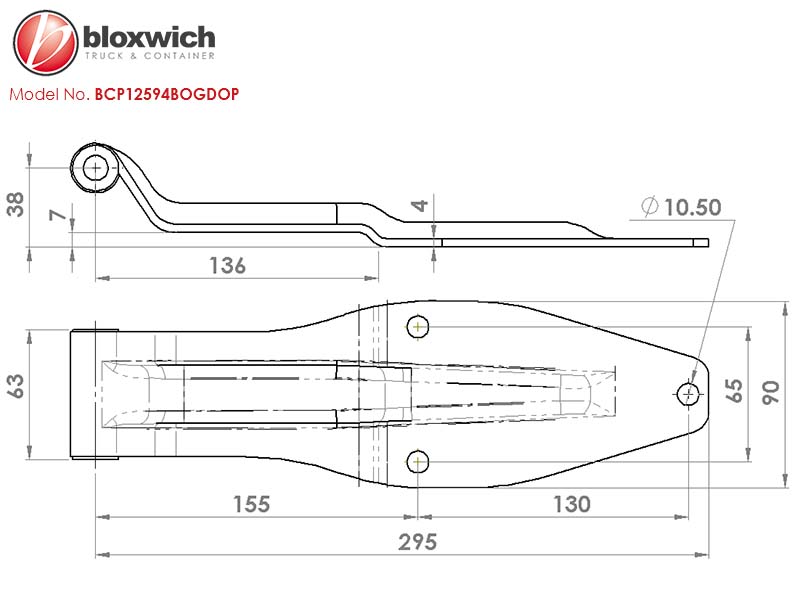

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
