BCP12594 Mild Steel Pressed Hinge 299mm
BCP12594 Mild Steel Pressed Hinge 299mm - view 1BCP12594 Mild Steel Pressed Hinge 299mm - view 2BCP12594 Mild Steel Pressed Hinge 299mm - view 3DrawingOptionsBush OptionsBCP12594 Mild Steel Pressed Hinge 299mm - view 7BCP12594 Mild Steel Pressed Hinge 299mm - view 8

BCP12594 Mild Steel Pressed Hinge 299mm

Price: £4.66 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Mild Steel Pressed Hinge 299mm

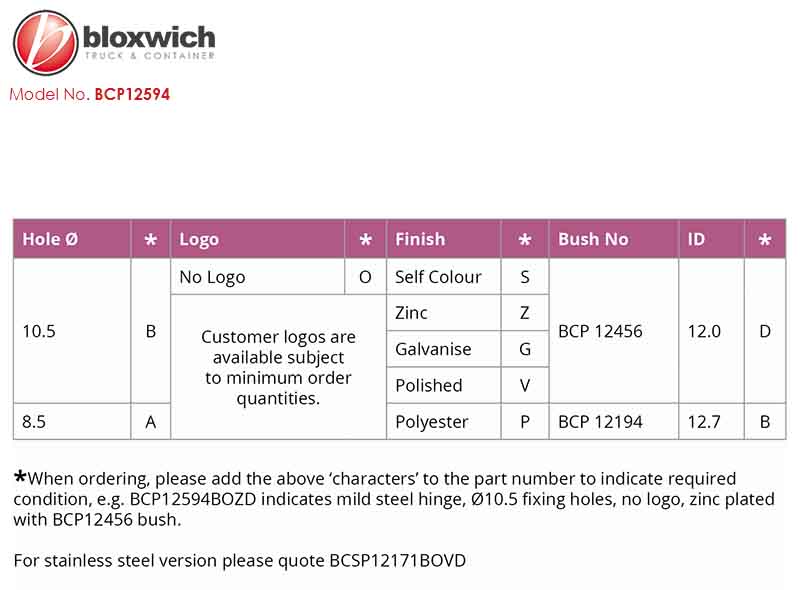

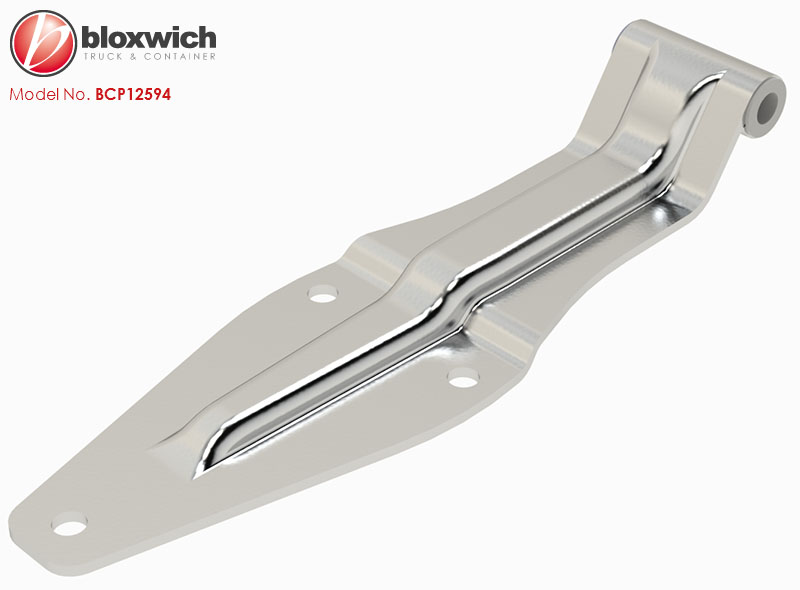

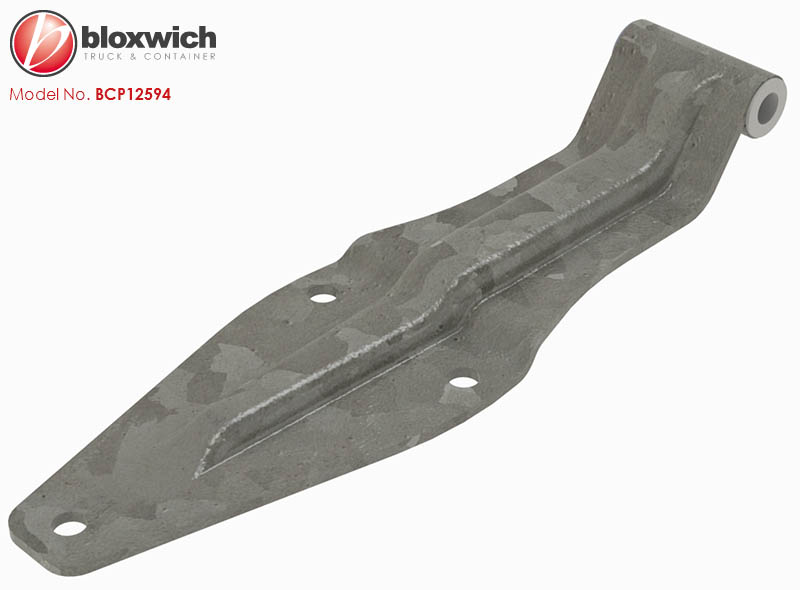

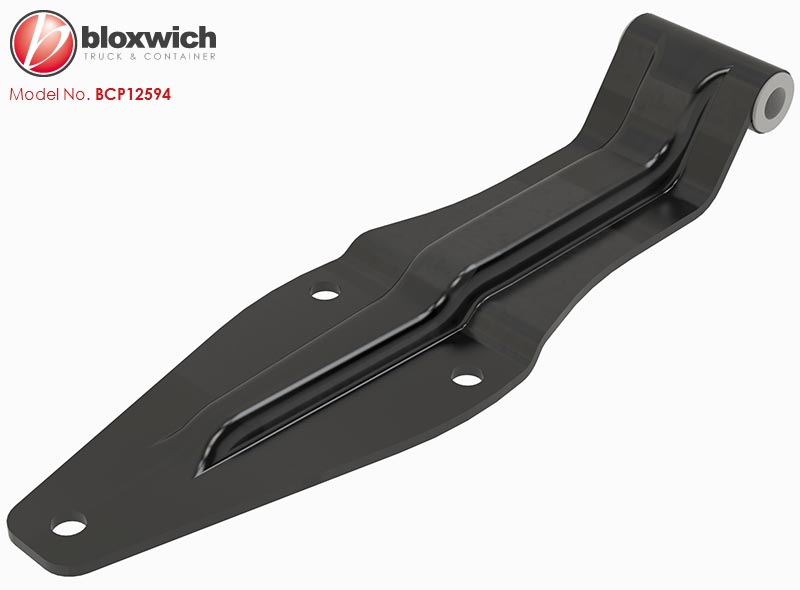

Supplied in: Self colour, zinc plated, galvanised or polyester

Use: Bolt-on design, bushed to suit M12 bolt or Ø12 stainless steel hinge pin or 1/2" bolt or Ø12.7 hinge pin

Weight: 620 g   Commodity No 830210  GTIN5060345310405

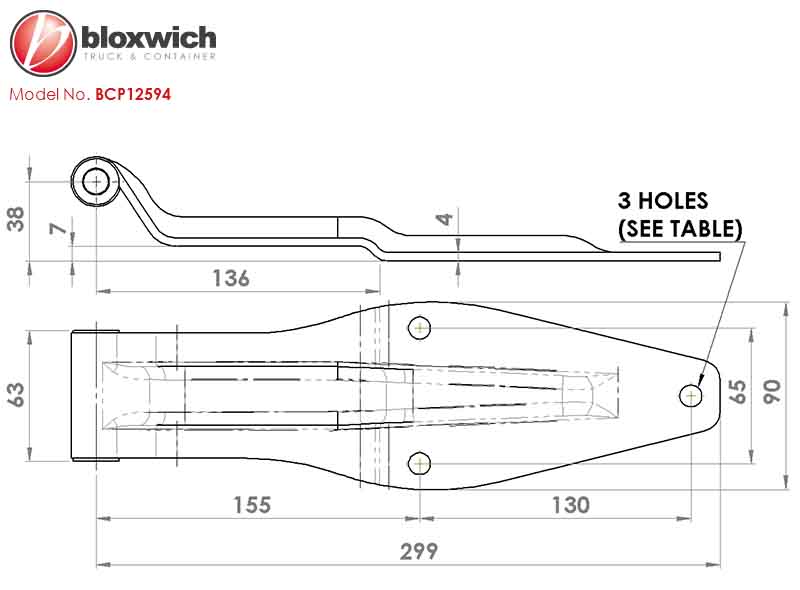

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
