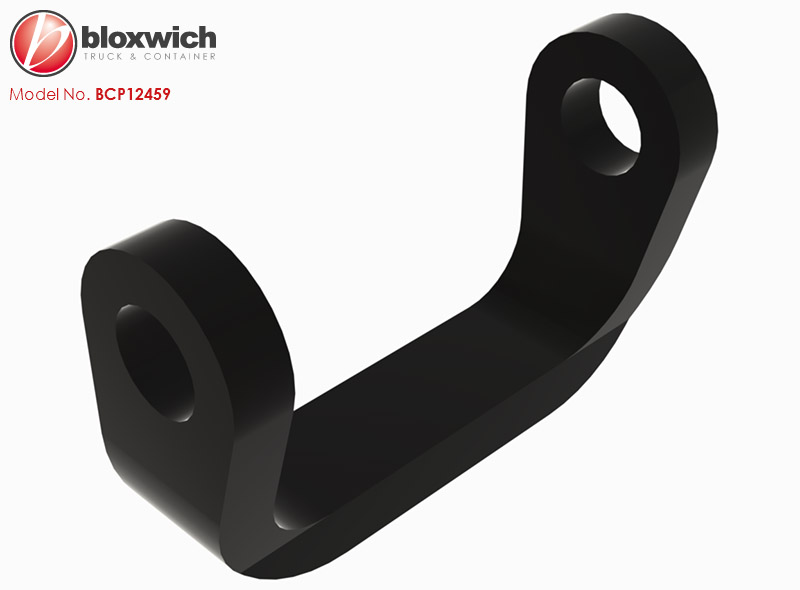

Bloxwich Standard Patent Design: Mild Steel Weld On Hinge Bracket 64mm (Offset)

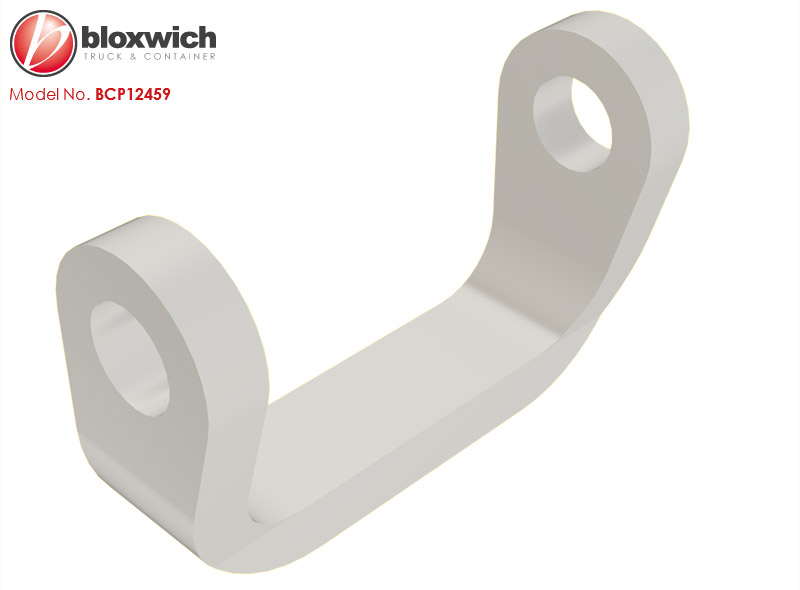

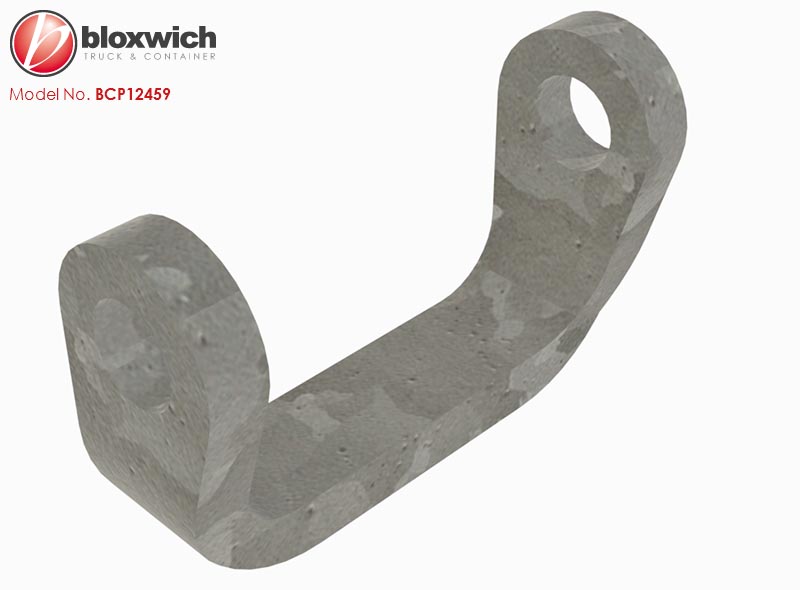

Supplied in: Self colour, zinc plated or galvanised
Use: /1 pivot hole size to suit M12 bolt or Ø12 hinge pin or /2 version suits 1/2" bolt or Ø12.7 hinge pin.
Weight: 170 g Commodity No 830249 GTIN 5060345310474
Click

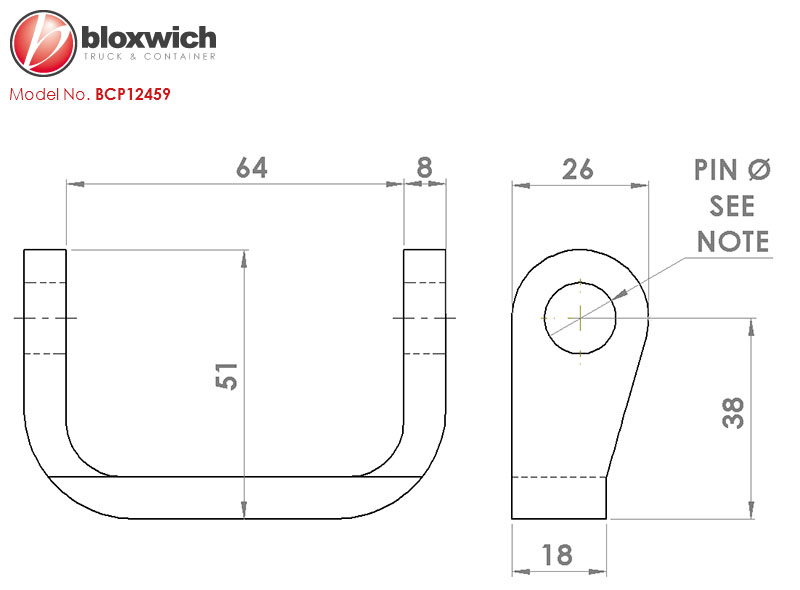

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
