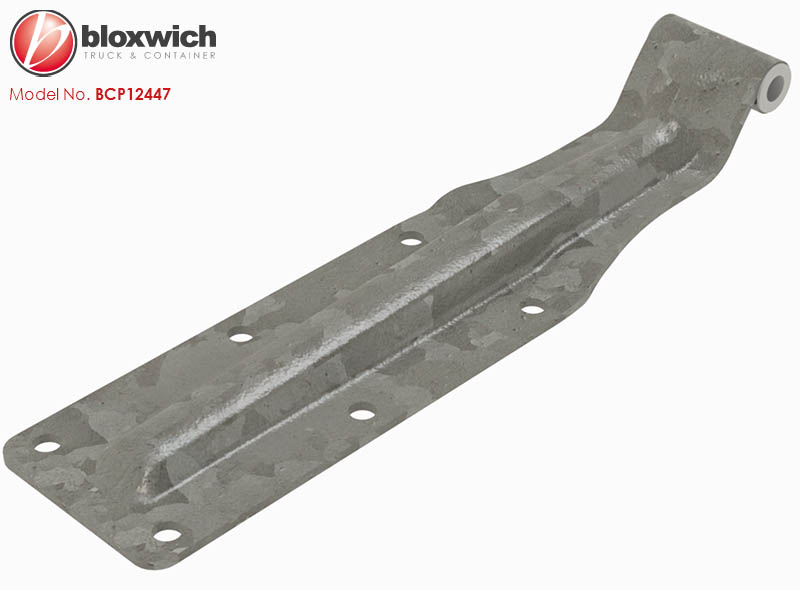

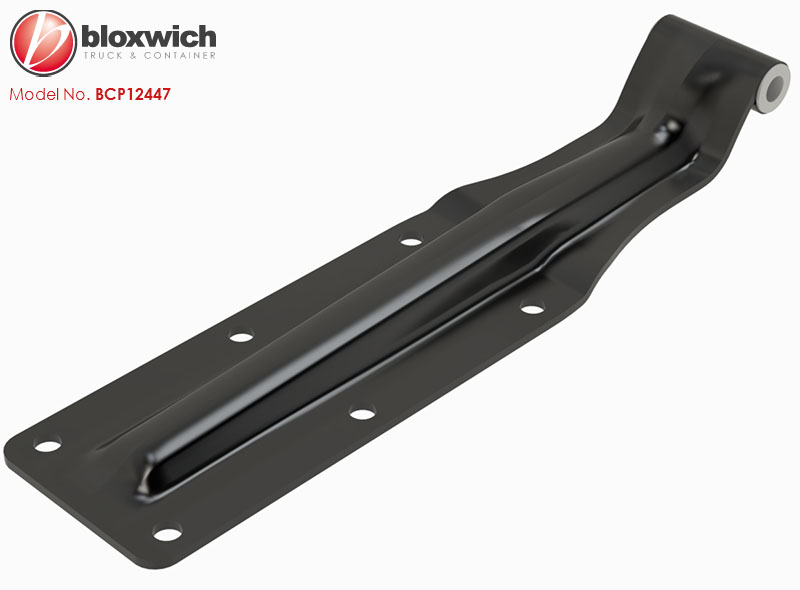

BCP12447 Mild Steel Pressed Hinge 356mm
BCP12447 Mild Steel Pressed Hinge 356mm - view 1BCP12447 Mild Steel Pressed Hinge 356mm - view 2BCP12447 Mild Steel Pressed Hinge 356mm - view 3DrawingOptionsBush Options

BCP12447 Mild Steel Pressed Hinge 356mm

Price: £6.20 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Mild Steel Pressed Hinge 356mm

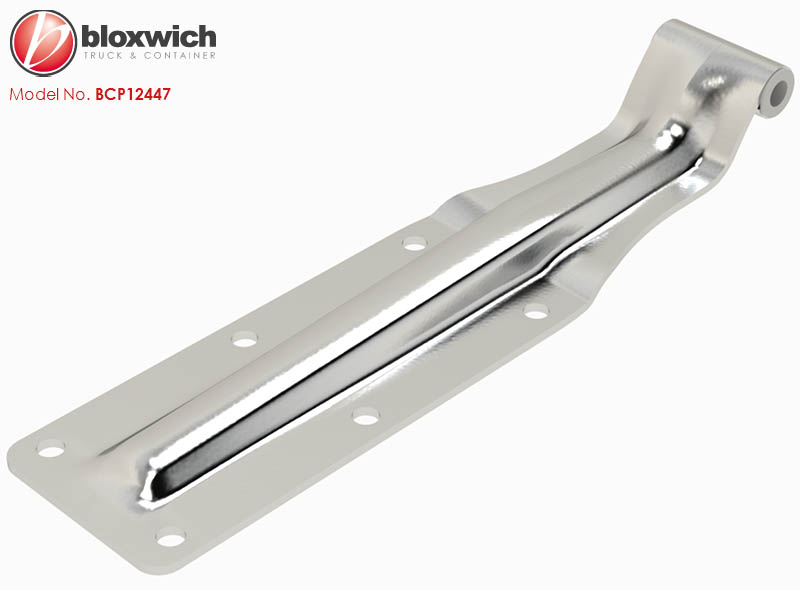

Supplied in: Self colour, zinc plated, galvanised or polyester

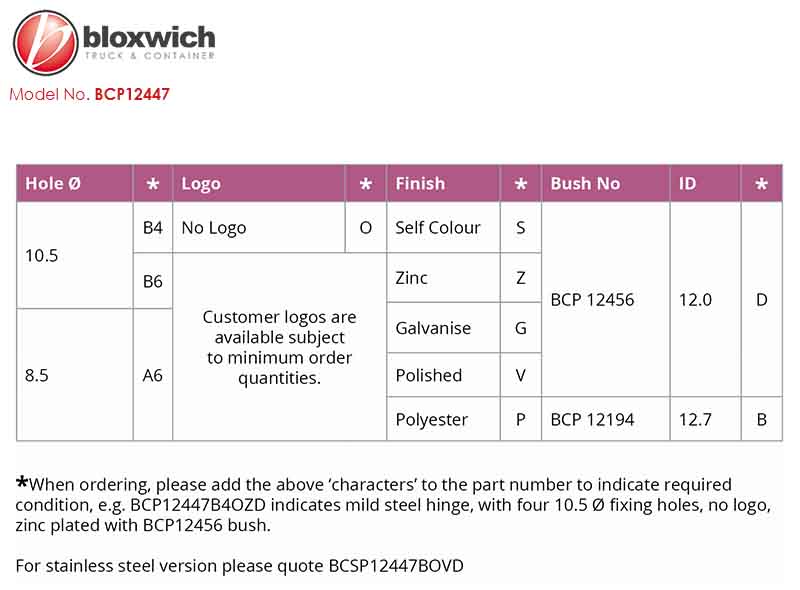

Use: Bolt-on design, bushed to suit M12 bolt or Ø12 stainless steel hinge pin or 1/2" bolt or Ø12.7 hinge pin

Weight: 1.1 kg  Commodity No 830210  GTIN 5060345311013

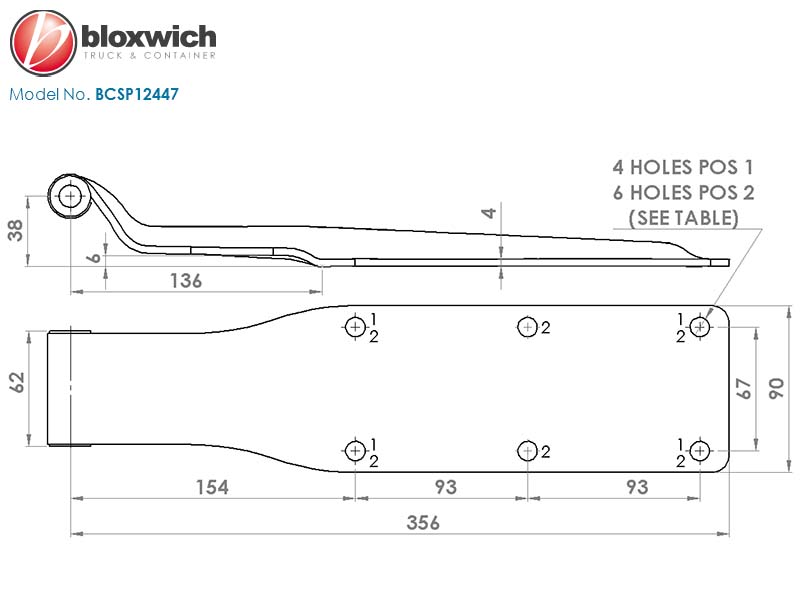

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
