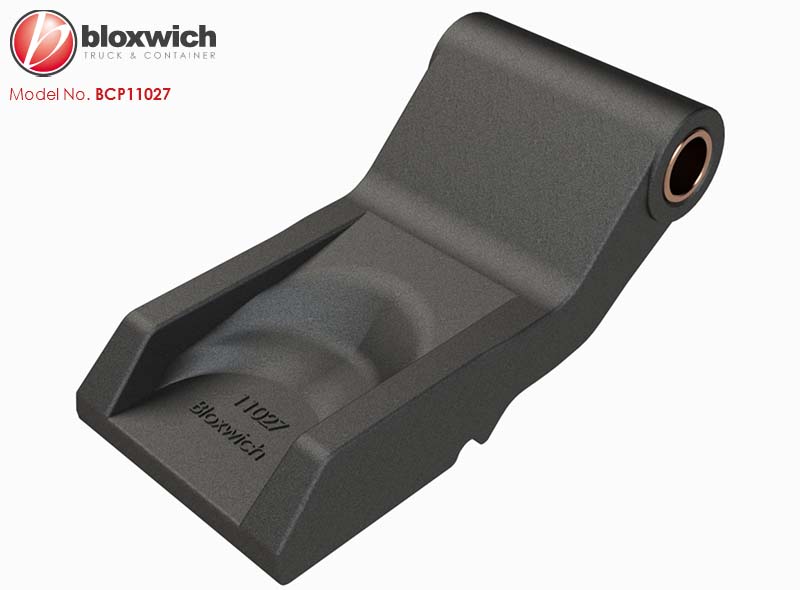

BCP11027 Forged Steel Door Hinge 111mm

Bloxwich Standard Patent Design: Forged Steel Door Hinge 111mm

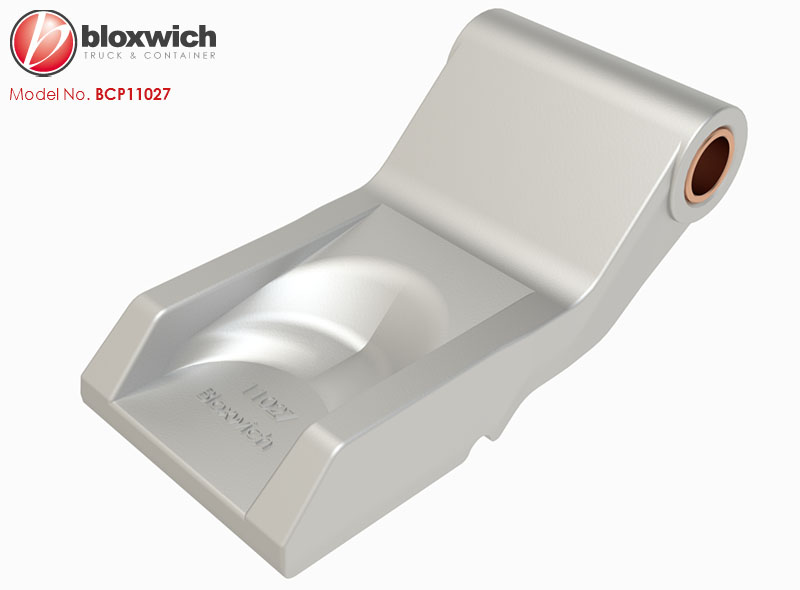

Supplied in: Self colour or zinc plated

Use: Weld-on design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt

Weight: 860 g  Commodity No 830210   GTIN 5060345310535

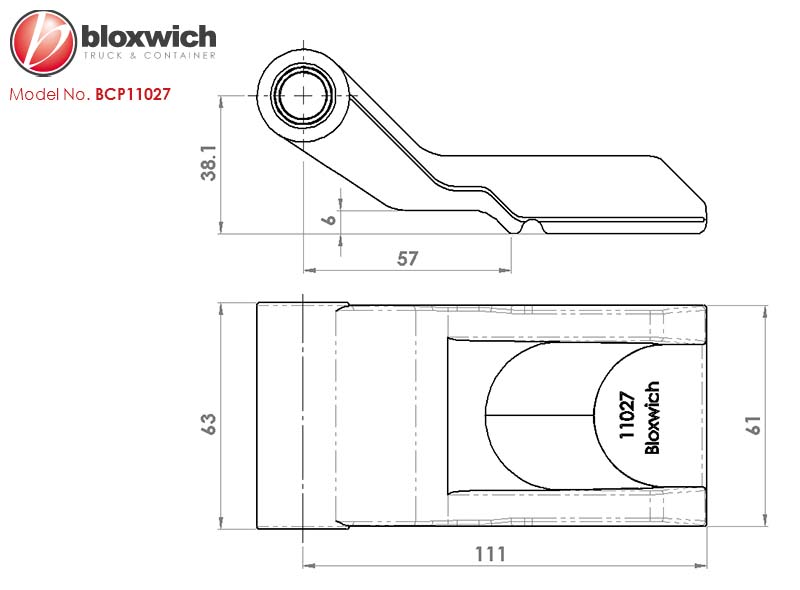

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
