BCP11026DM Forged Steel Door Hinge 130mm

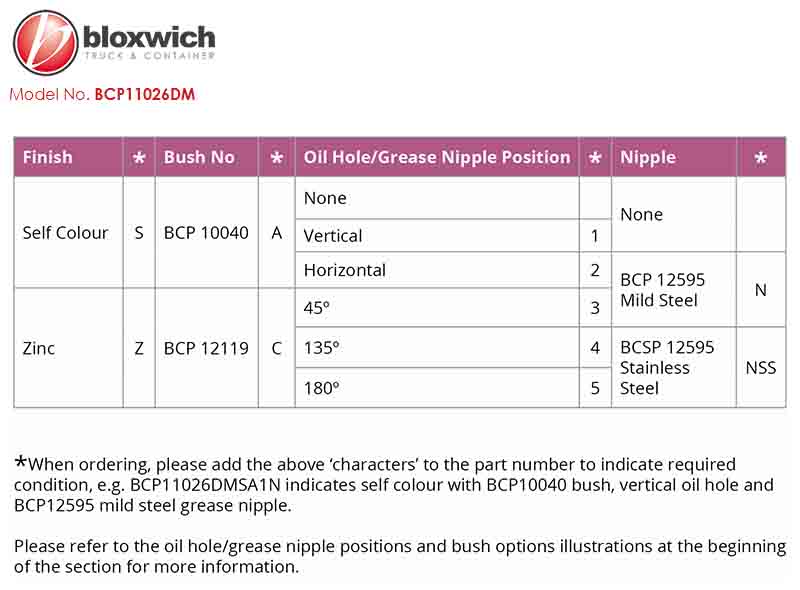

BCP11026DM Forged Steel Door Hinge 130mm - view 1Zinc plated finishDrawingAll OptionsBush OptionsOil Hole/Grease Nipple Positions

BCP11026DM Forged Steel Door Hinge 130mm

Price: 4.91 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Forged Steel Door Hinge 130mm

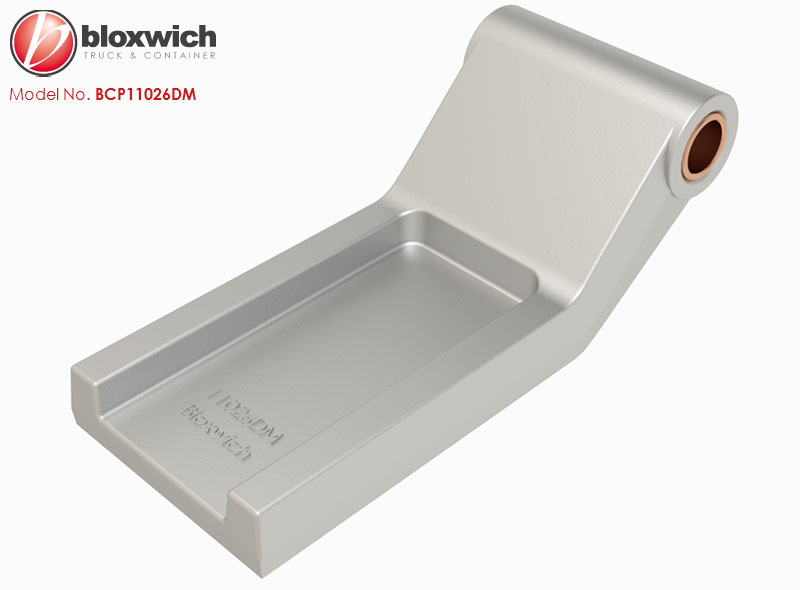

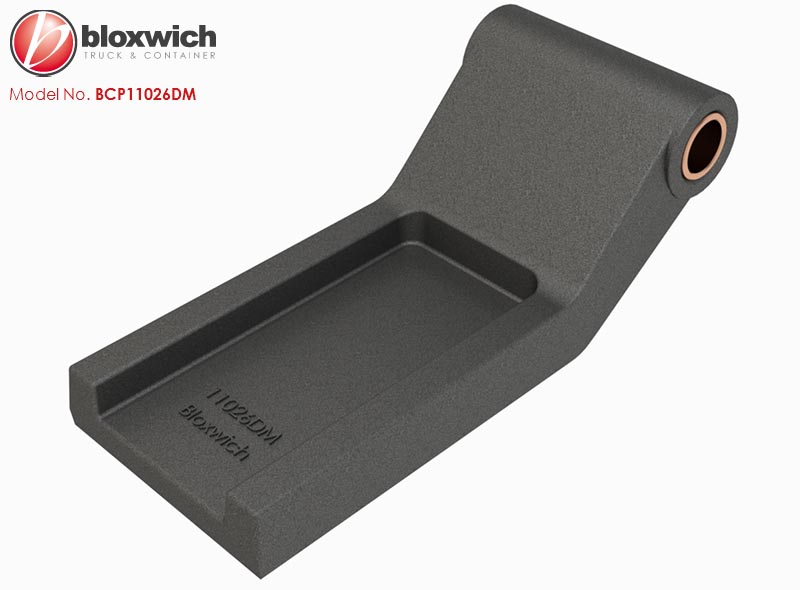

Supplied in: Self colour or zinc plated

Use: Weld-on flat back design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt. Not suitable for use on offshore container doors.

Weight: 940 g  Commodity No 830210   GTIN 5060345310528

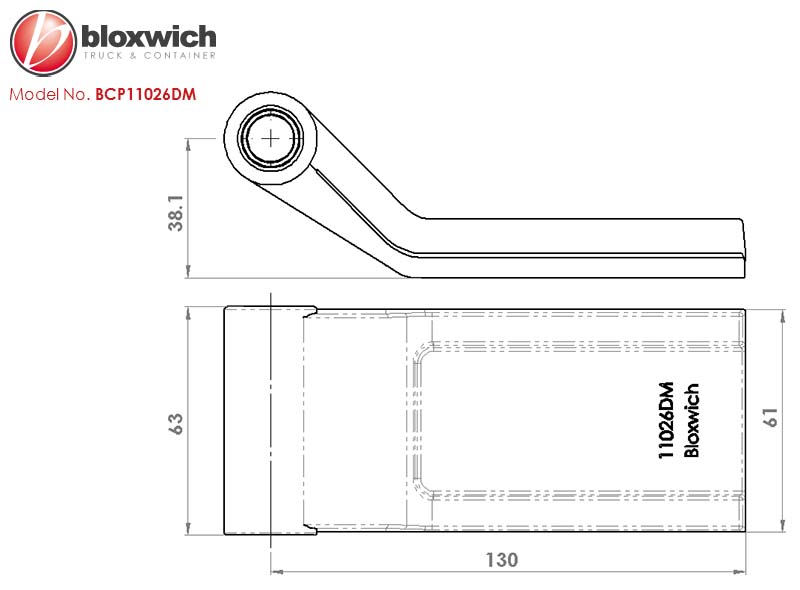

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
