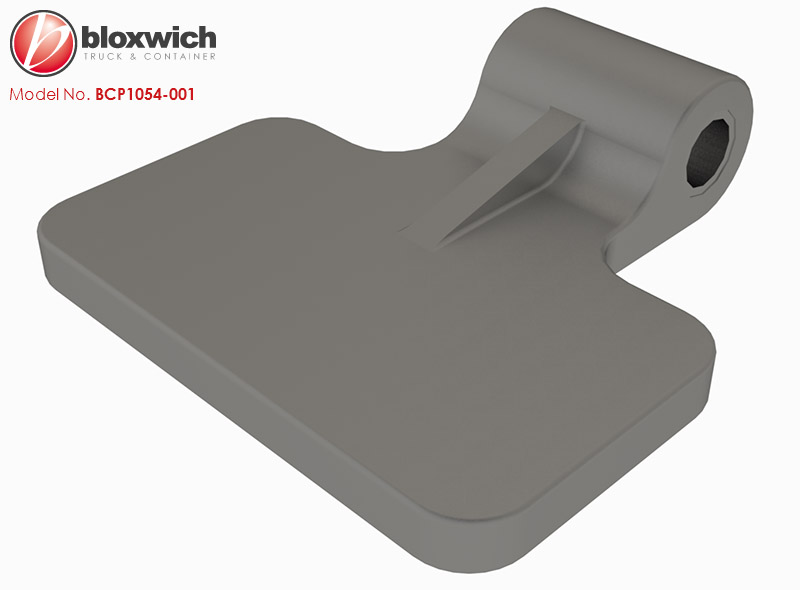

BCP1054-001 Forged Aluminium Door Hinge 92mm

Bloxwich Standard Product: BCP1054-001 Forged Aluminium Door Hinge 92mm

Supplied in: Self colour forged aluminium with mild steel zinc plated bush

Use: Weld on hinge to suit Ø12 hinge pin or M12 bolt or Ø12.7 hinge pin or 1/2" bolt. Can also be used with the BCP1037/002 or BCP1037/010 weld-on gudgeons

Weight: 520 g/500 g/270 g  Commodity No 830210   GTIN 5060345313895

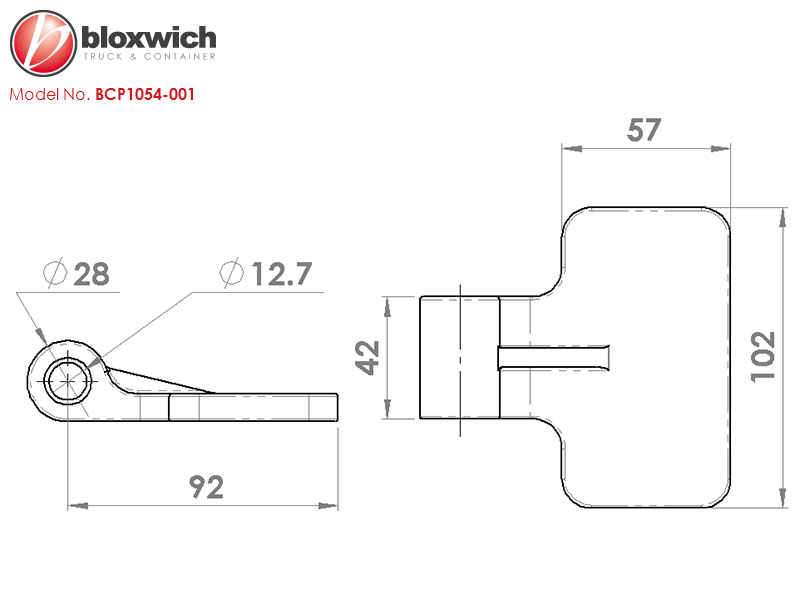

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
