BCP1032 Forged Steel Door Hinge 83mm

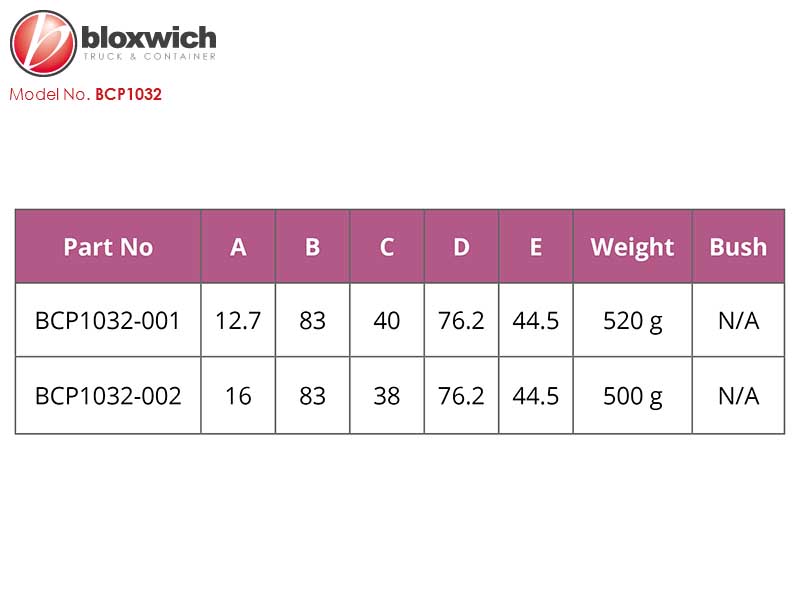

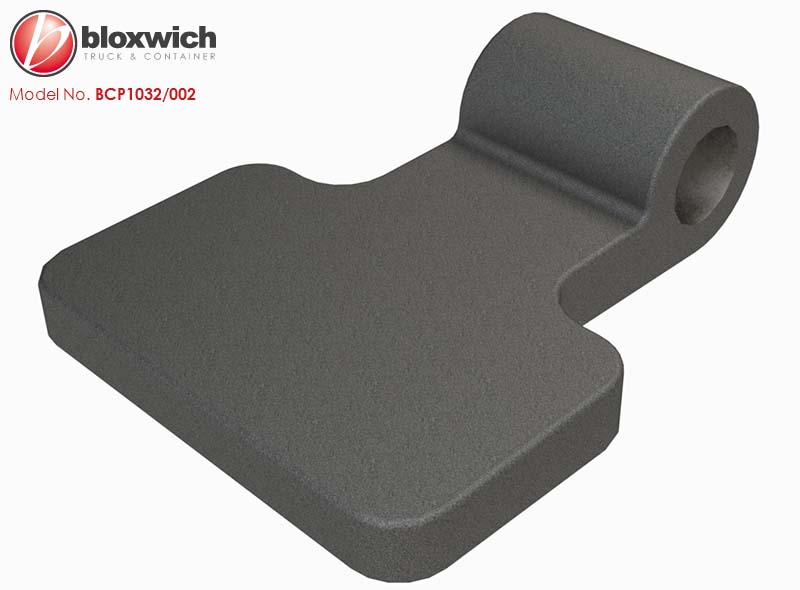

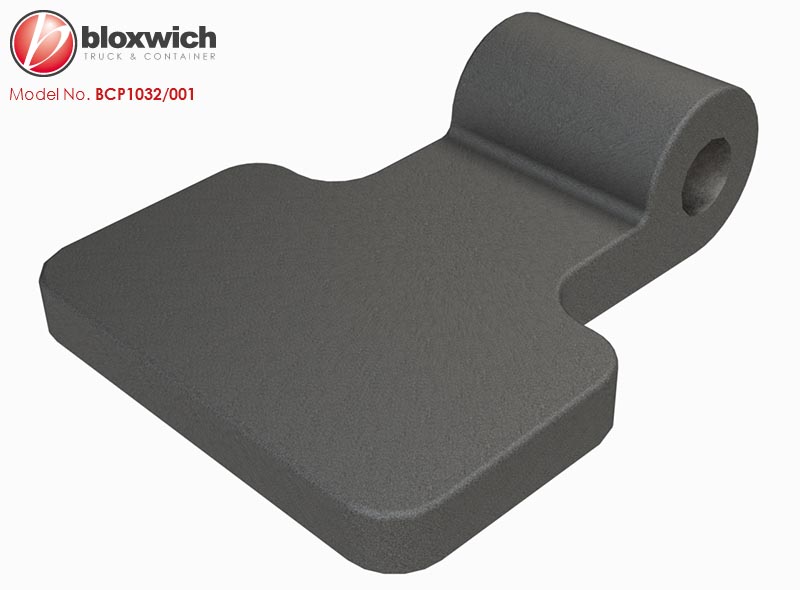

12.7 hole (BCP1032/001)16 hole (BCP1032/002)DrawingTable of dimensions

BCP1032 Forged Steel Door Hinge 83mm

Price: £4.09 (ex VAT)

Description
Description


Bloxwich Standard Product: BCP1032 Forged Steel Door Hinges 83mm

Supplied in: Self colour

Use: Weld on hinge. The Ø12.7 hole version is for use with BCP1037/002 or BCP1037/010 gudgeons. The Ø16 hole version is for use with the BCP1037/003 gudgeon.

Can also be used with the Ø12 hinge pins or M12 bolts and the BCP1032/002 suits Ø16 pins or M16 bolts.

Weight: 520 g (BCP1032/001) /500g (BCP1032/002)  Commodity No 830210   GTIN 5060345313895

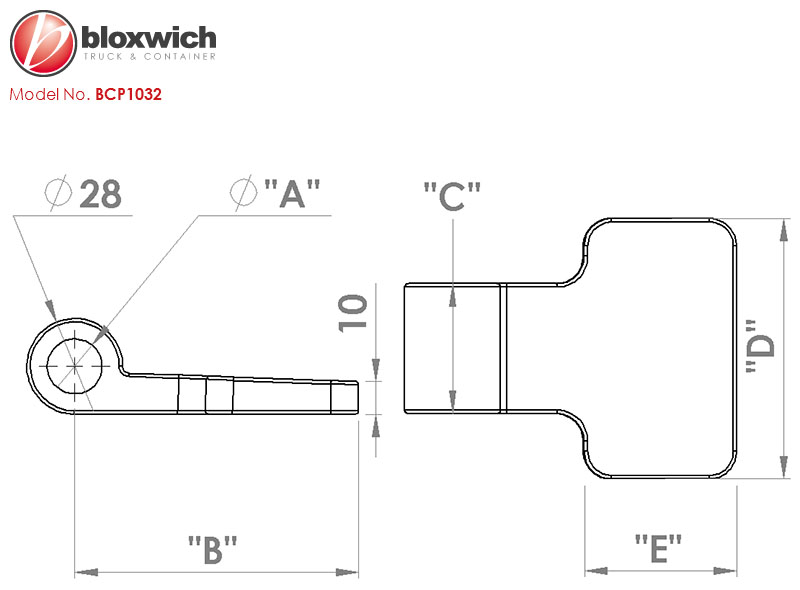

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
