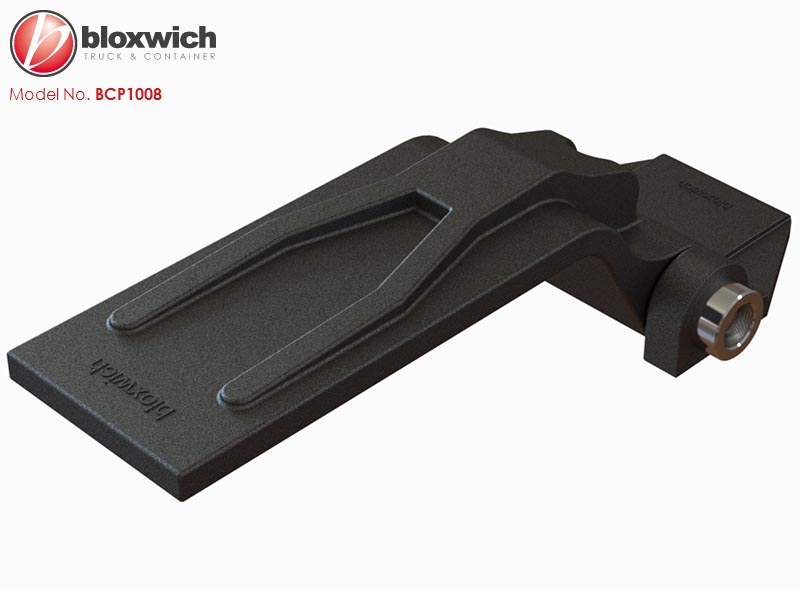

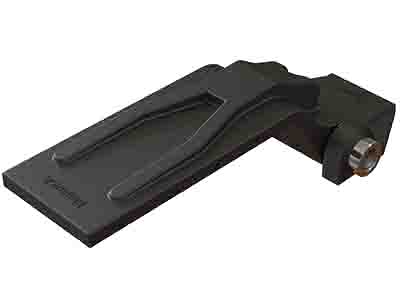

BCP1008 Reverse Hinge Assembly 165mm

Bloxwich Standard Design: Reverse Hinge Assembly 165mm

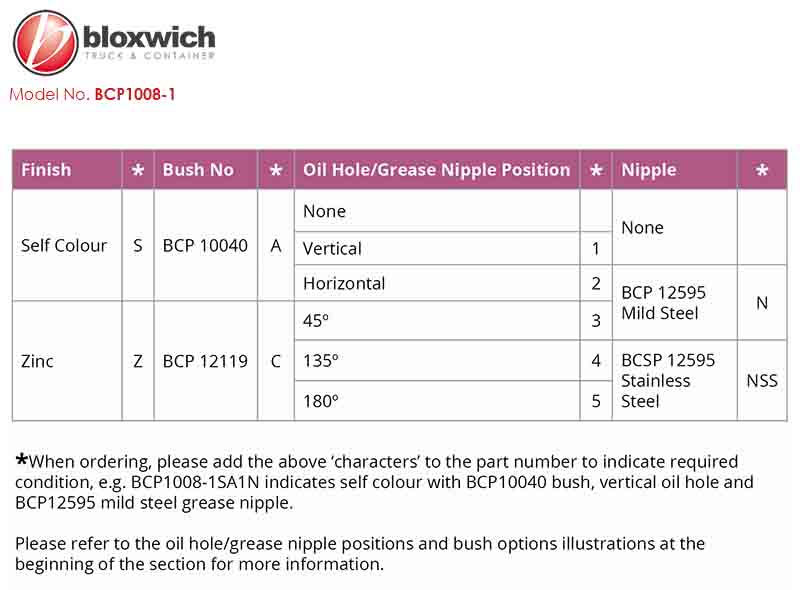

Supplied in: Self colour or zinc plated

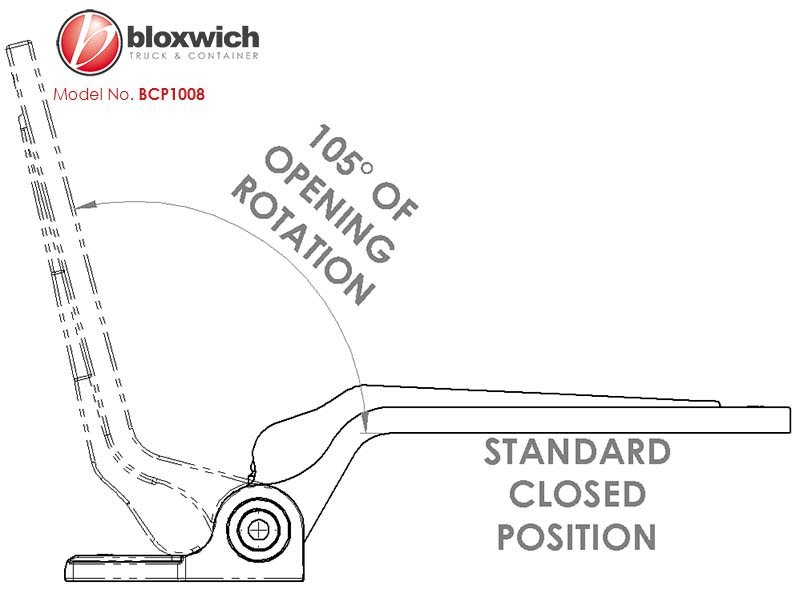

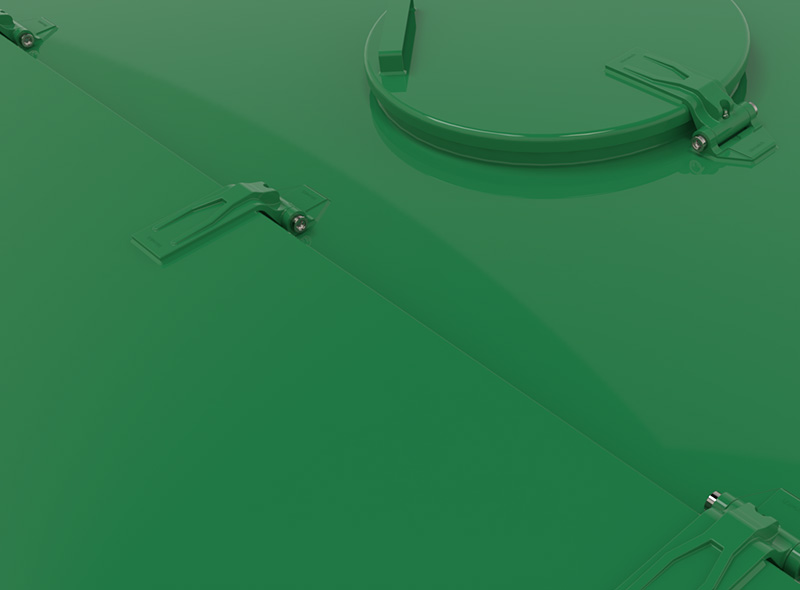

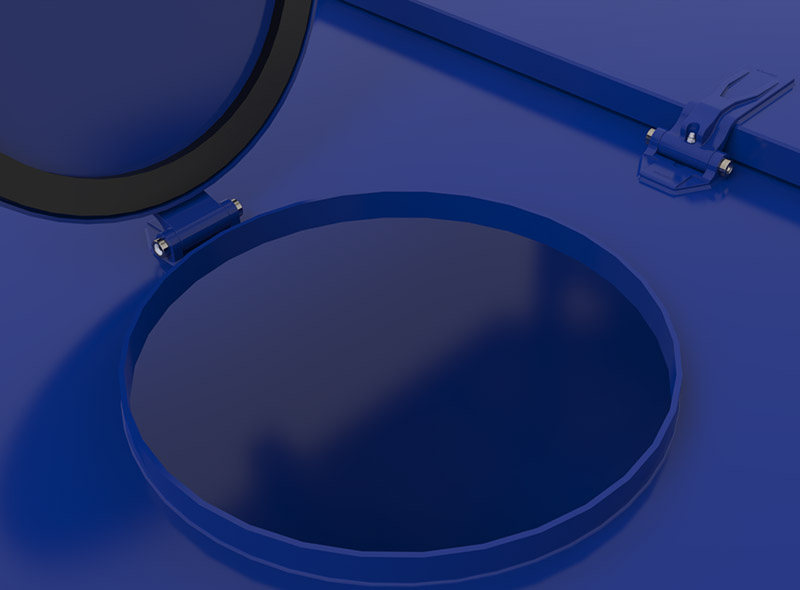

Use: On sealed or unsealed lids or hatches, commonly used on offshore mud skips as these hinges help reduce their overall height. Central spine/stiffener is designed for lids to sit the past vertical in the open position.

Weight: 1.5 kg  Commodity No 830210  GTIN 5060345312775

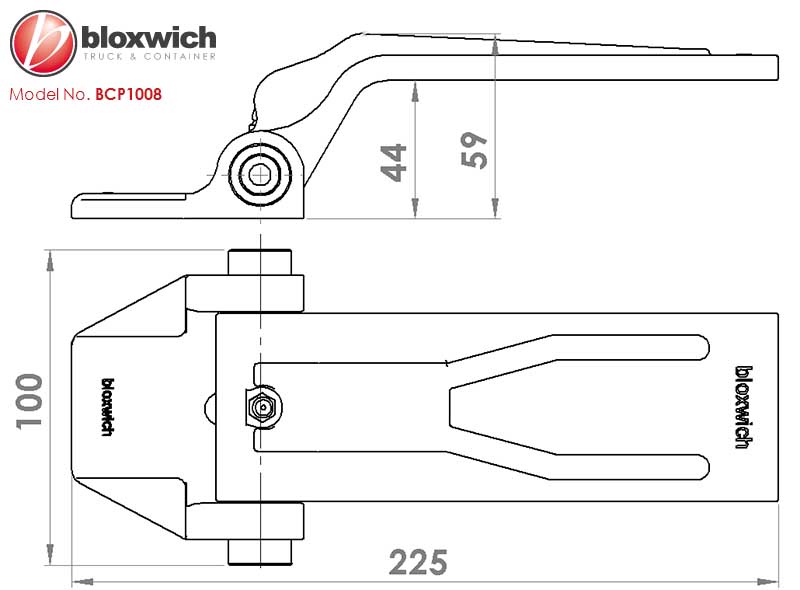

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
