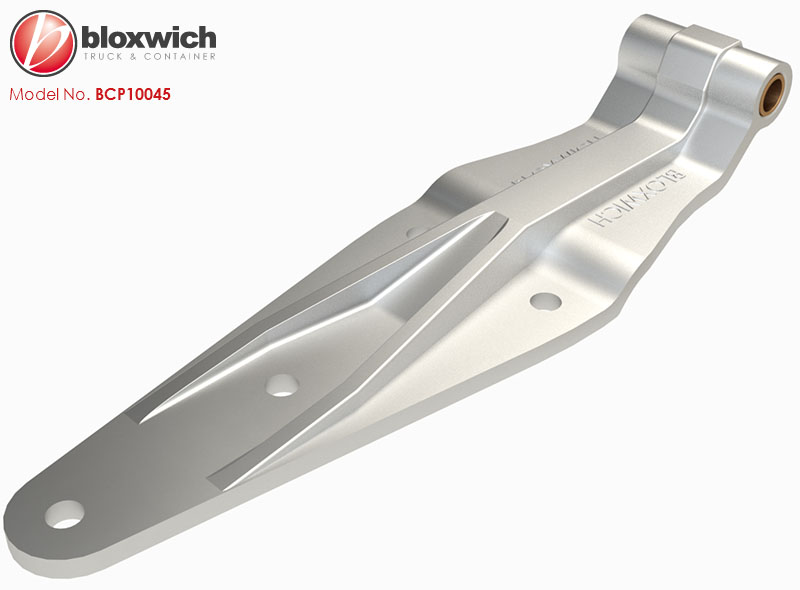

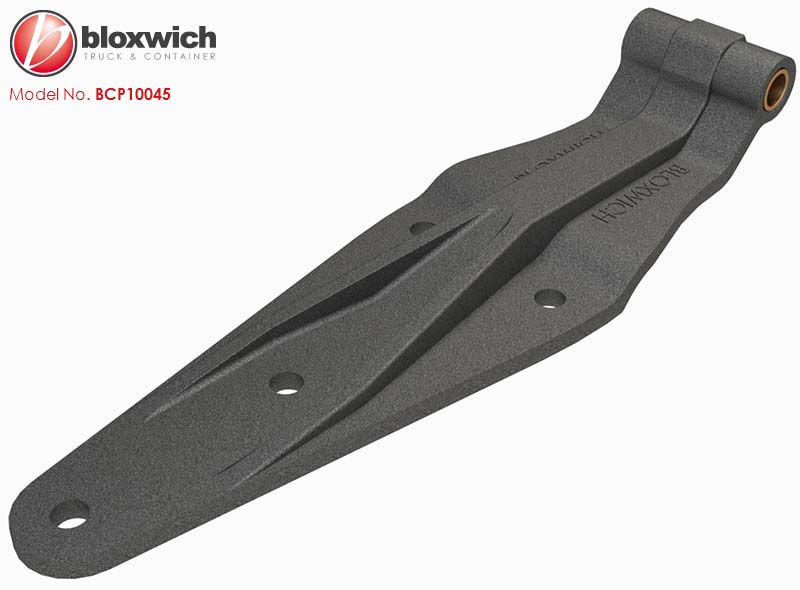

BCP10045 Forged Steel Door Hinge 305mm

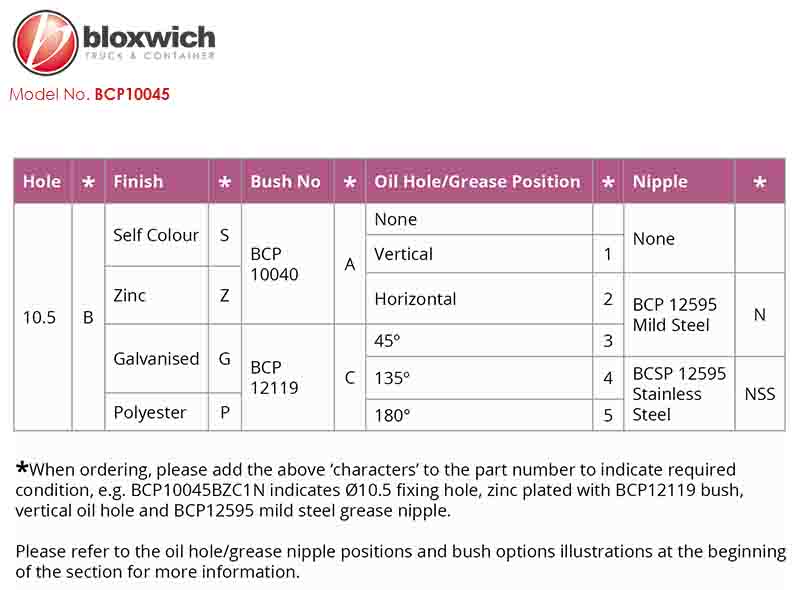

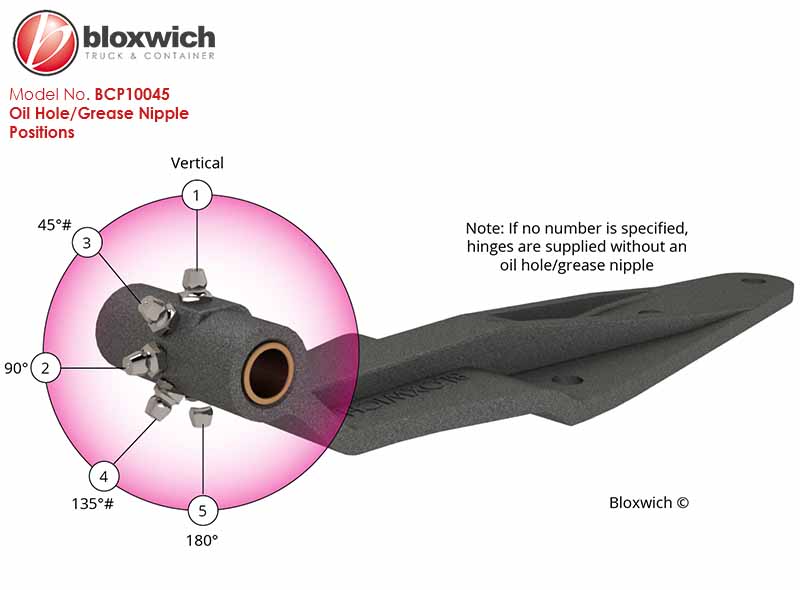

Self colour finish Zinc plated finish Galvanised finish DrawingAll OptionsBush OptionsOil Hole/Grease Nipple Positions

BCP10045 Forged Steel Door Hinge 305mm

Price: £6.66 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Forged Steel Door Hinge 305mm

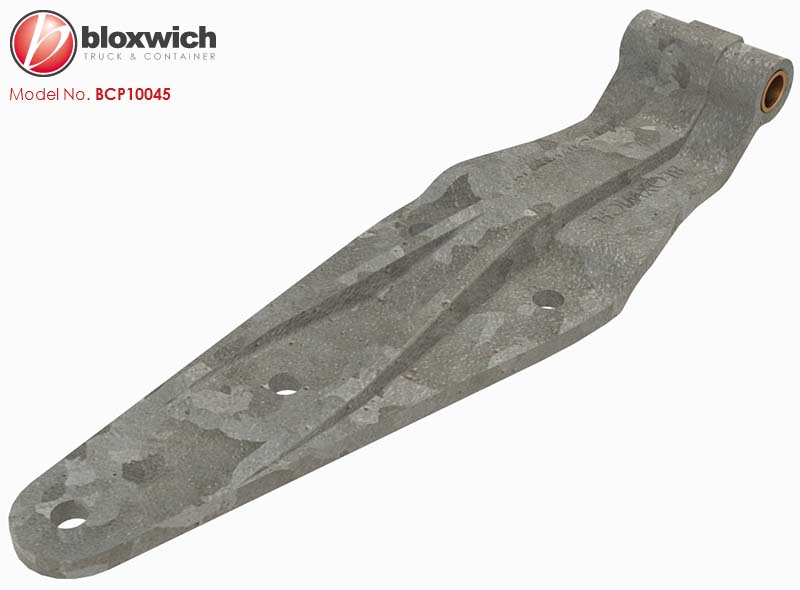

Supplied in: Self colour, zinc plated, galvanised or polyester

Use: Bolt-on design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt

Weight: 1.6 kg  Commodity No 830210   GTIN 5060345310504

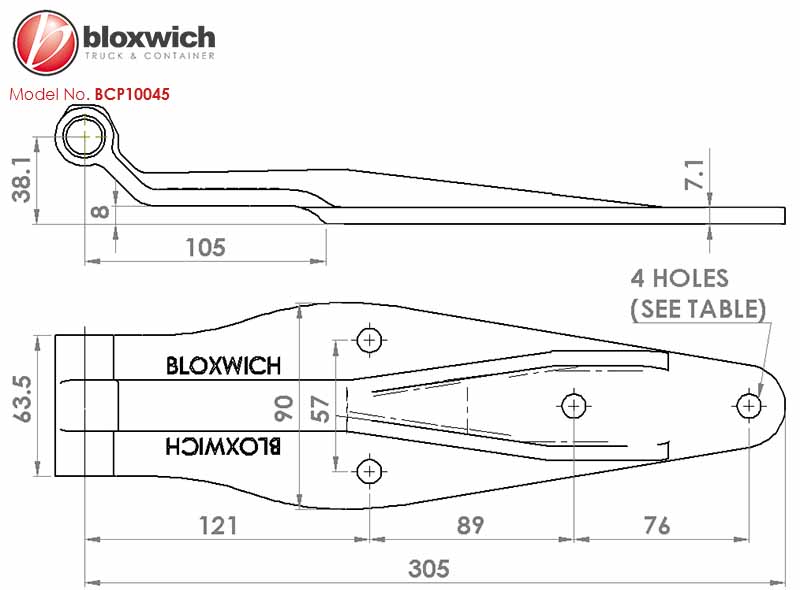

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
