Bloxwich Standard Patent Design Mild Steel Door Gear: B2588, 34mm Door locking Gear, Bushed, Weld On Brackets & Keepers

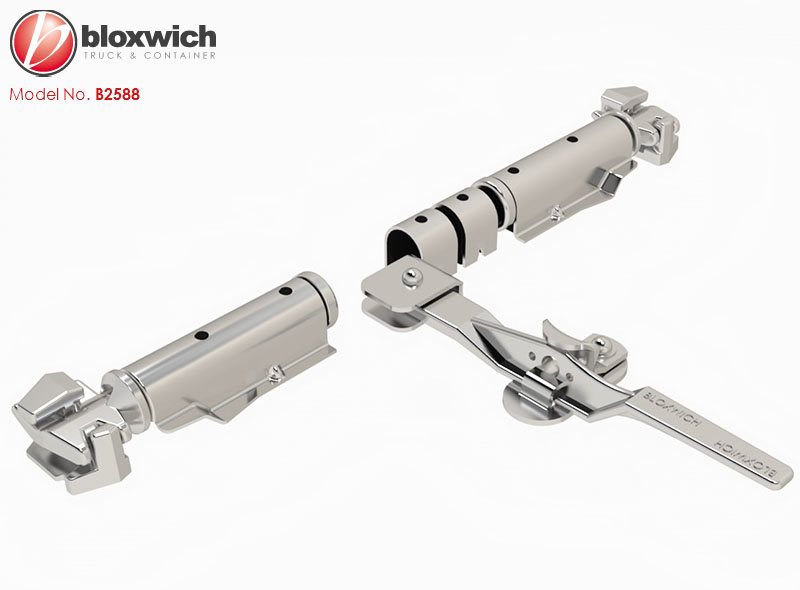

Supplied in: Self colour, zinc plated or galvanised. Parts supplied loose, tube sold separately and fully welded also available.
Use: Standard design for use on shipping containers and offshore containers. Weld on brackets and keepers provides extra security. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Set weight in plastic bag: 4.6 kg Commodity Code 830249 GTIN 5060345313925
Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*
Keepers: Weld on, bolt on, security(seal), offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models and see illustrations for further details.
Door gear was a revamp of an old Bloxwich model. Designed by Bloxwich in 1968. This is the original and still the best container door gear and it became standard on every shipping container. As a result of its type approval and widespread use on the shipping containers BE2566M became the standard door gear used all different shapes and sizes of offshore containers, side door baskets and end door baskets. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
Coming soon.

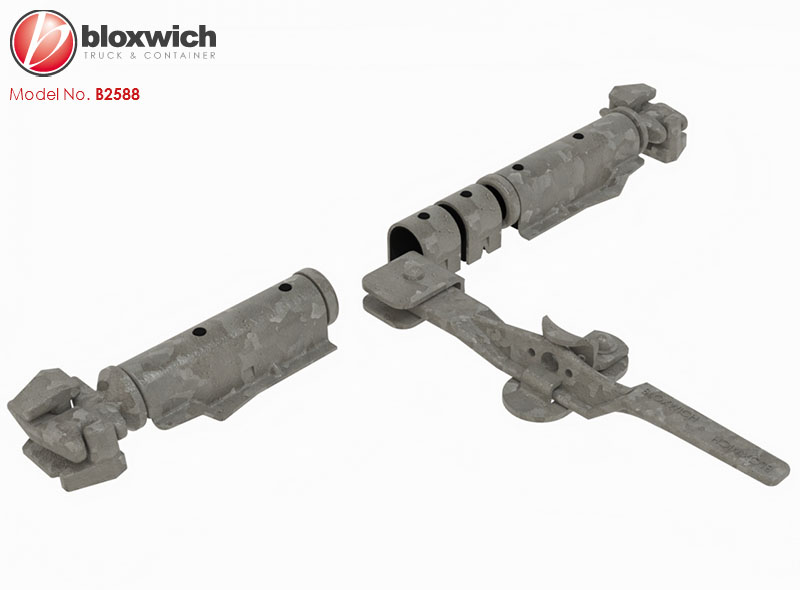

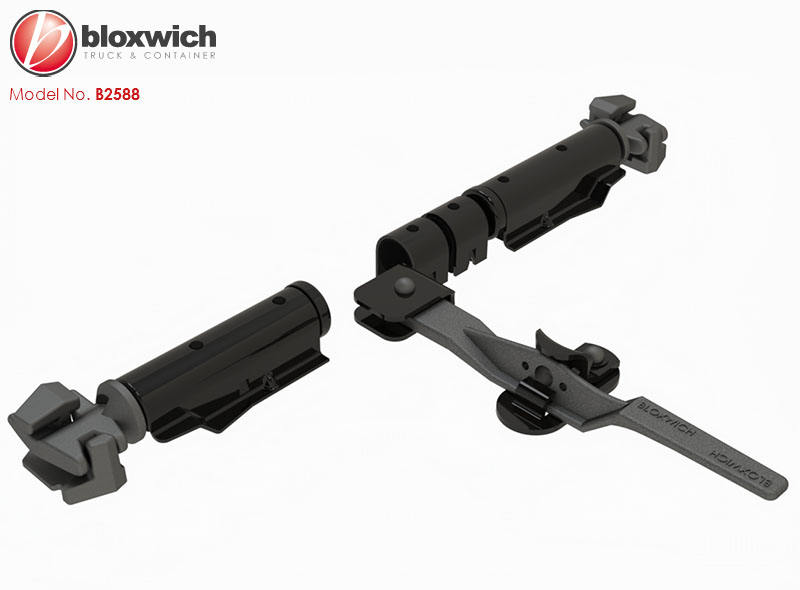

On self colour kits all parts are supplied self colour, on zinc plated kits all parts are supplied zinc plated but on galvanised kits only the bolt on items are galvanised and the weld on items are supplied in self colour for ease of welding.
Click

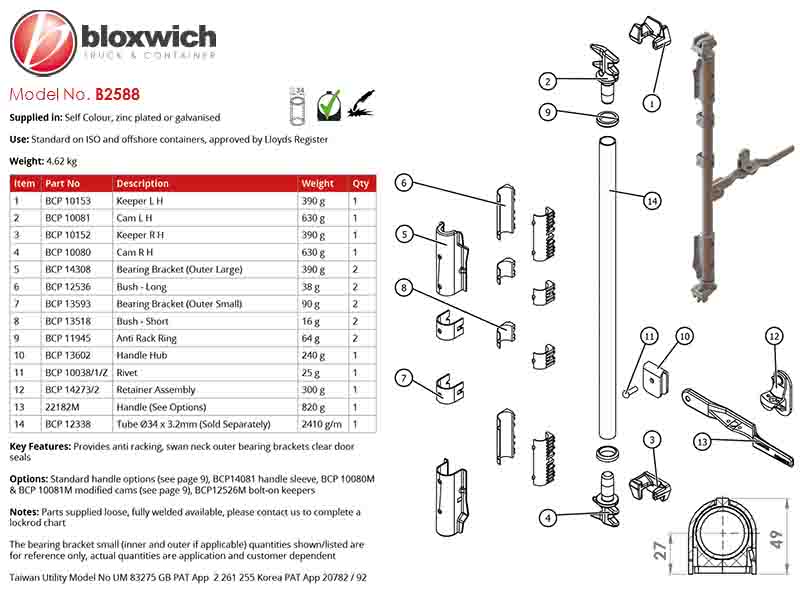

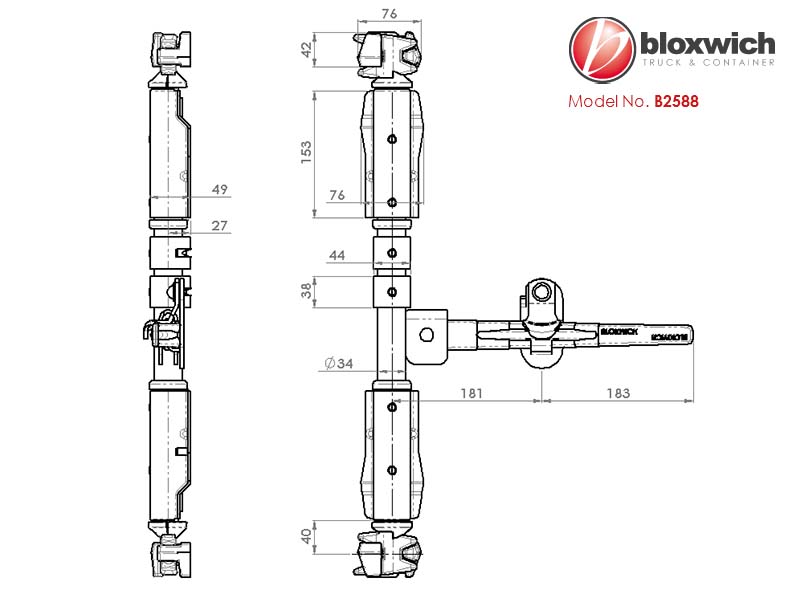

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
