B2500A 34mm Door Locking Gear

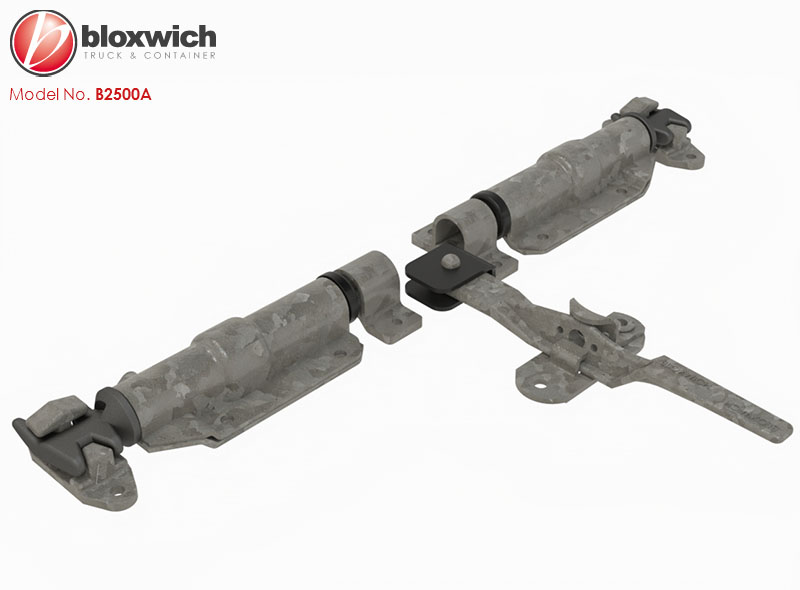

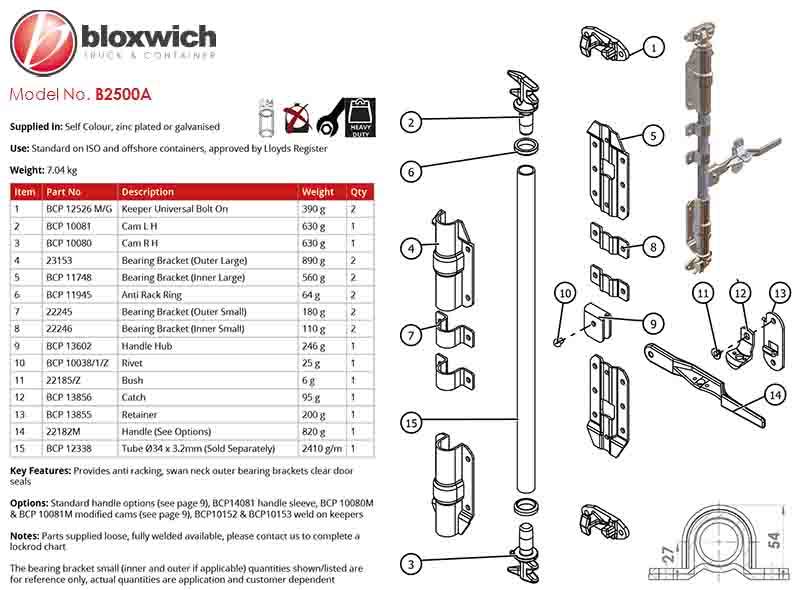

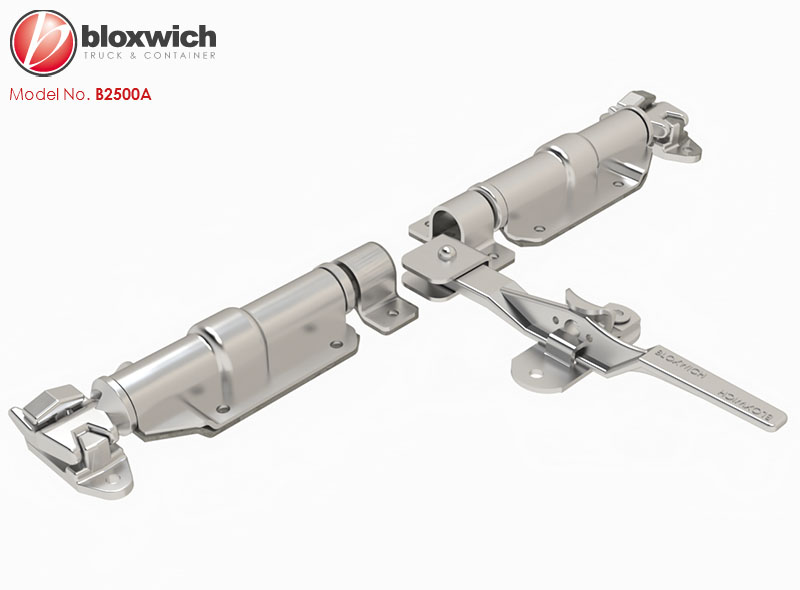

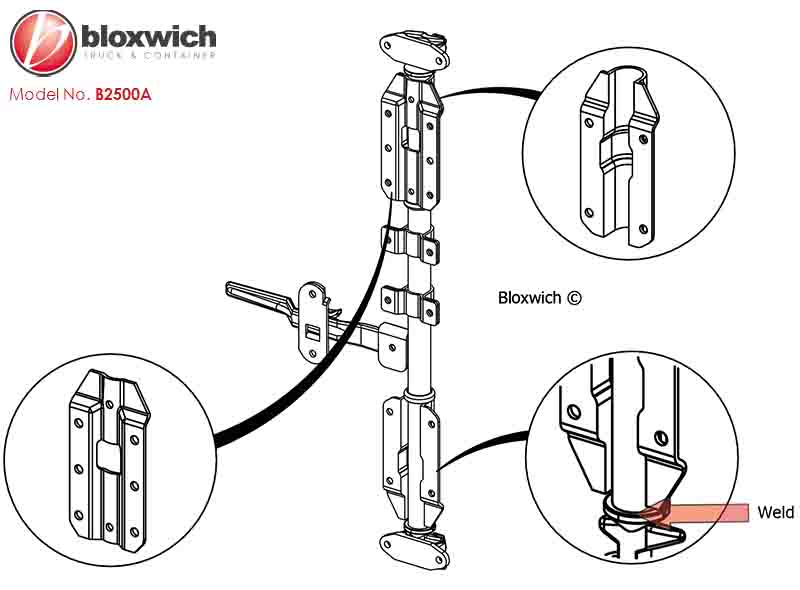

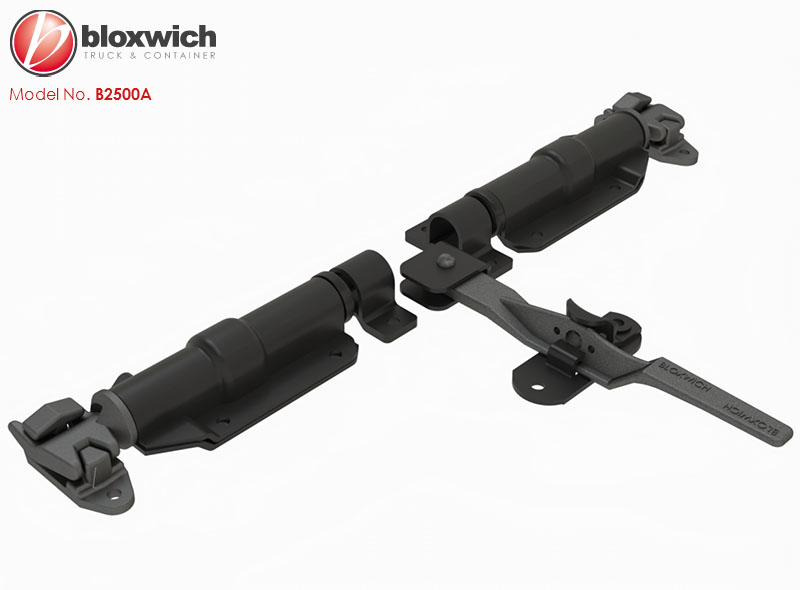

Galvanised finish (B2500A/1G)Zinc plated finish (B2500A/Z)Self colour finish (B2500A/1S)DrawingParts listWelding detailsDoor gear standard handle optionsB2500A 34mm Door Locking Gear

B2500A 34mm Door Locking Gear

Price: £37.43 (ex VAT)

Description
Description


Bloxwich Standard Patent Design Mild Steel Door Gear: B2500A, 34mm Door Locking Gear, Unbushed, Bolt On Brackets & Keepers

Supplied in: Galvanised finish as standard (bolt on parts), Self Colour (welded parts). Self Colour or Zinc finish also available. Parts supplied loose, tube sold separately and fully welded also available.

Use: Standard design for use on shipping containers and offshore containers with 'J' type seals. Fits left hand or right hand doors and can be mounted horizontally or vertically.

Set weight in plastic bag: 7.1 kg   Commodity Code 830249   GTIN 5060345313697

Options
Options


Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*
Keepers: Weld on, bolt on, security(seal), offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*

Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.

*Not available on all models and see illustrations for further details.

History
History



Designed by Bloxwich in 1968. This door gear became standard on every shipping container at one point but as a result of its type approval and widespread use on the shipping containers this design was copied as soon as the patents expired. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.

Video
Video


Coming soon.

*
*


On self colour kits all parts are supplied self colour, on zinc plated kits all parts are supplied zinc plated but on galvanised kits only the bolt on items are galvanised and the weld on items are supplied in self colour for ease of welding.

Fixing Kit & Gasket Set
Fixing Kit & Gasket Set


Fixing kit contains 18 M10 x 35 set screw (BCP14887), 18 flat washers (BCP14885) & 18 nyloc nuts (BCP14884) all are galvanised.

B2500A-GASKET-SET is for weld on keepers and contains BCP20074E x 2, BCP20073E x 2 & BCP13618E x 1 and B2500A-GASKET-SET2 is for bolt on keepers and contains BCP20106E x 2, BCP20074E x 2, BCP20073E x 2 & BCP13618E x 1

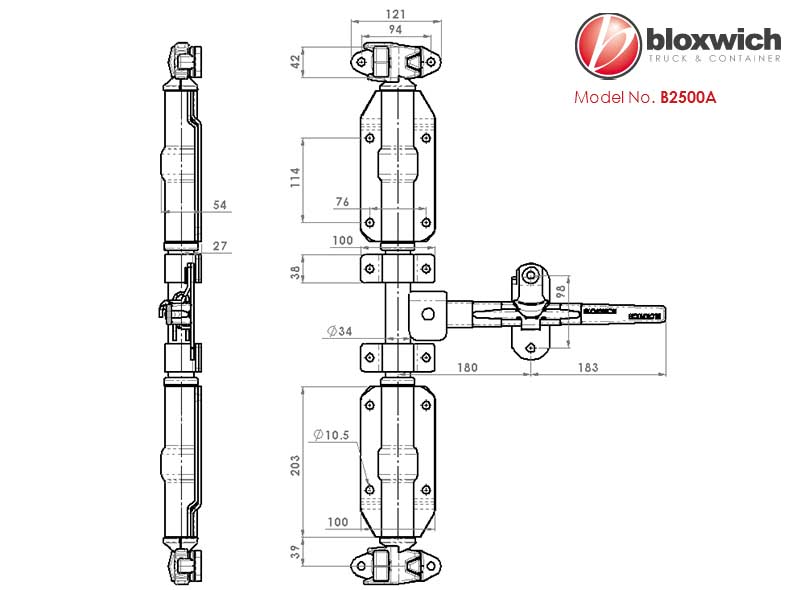

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
