Bloxwich Standard Patent Mild Steel Door Gear - HD: B2000NMNV, 27mm Door Locking Gear, Bushed, Bolt on Brackets and Narrow Base Keepers, Variable Height

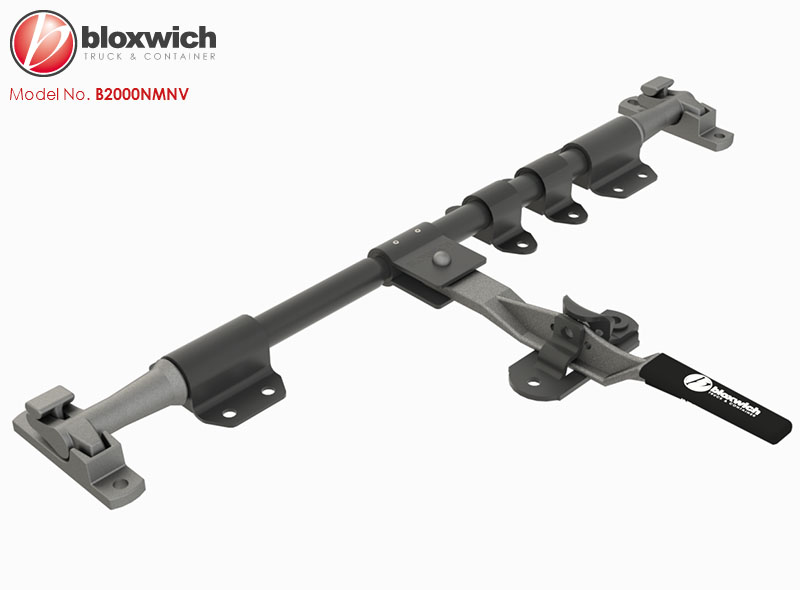

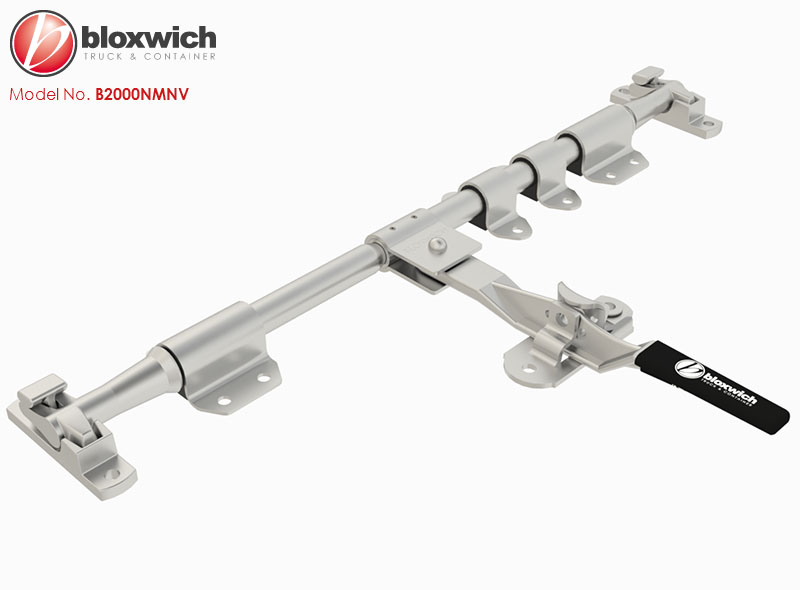

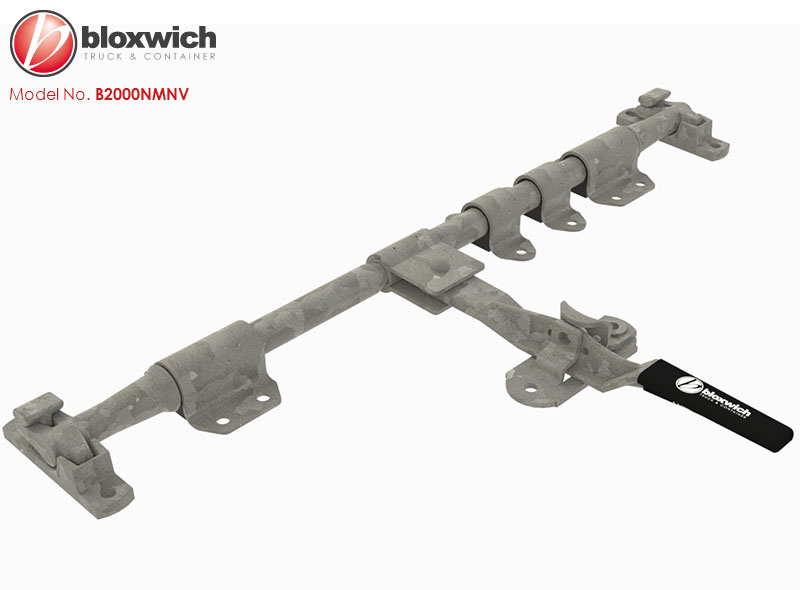

Supplied in: Self colour, zinc plated or galvanised.
Use: Commonly used on HGV trailers as the variable height easily allows this door gear to be fitted to a range of trailer heights. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Key Features: Provides anti racking, variable height
Notes: Upper and lower rod assemblies fully welded, other parts supplied loose. All parts are in stock, please allow 7-10 days for assembly/welding and zinc plating or galvanising.

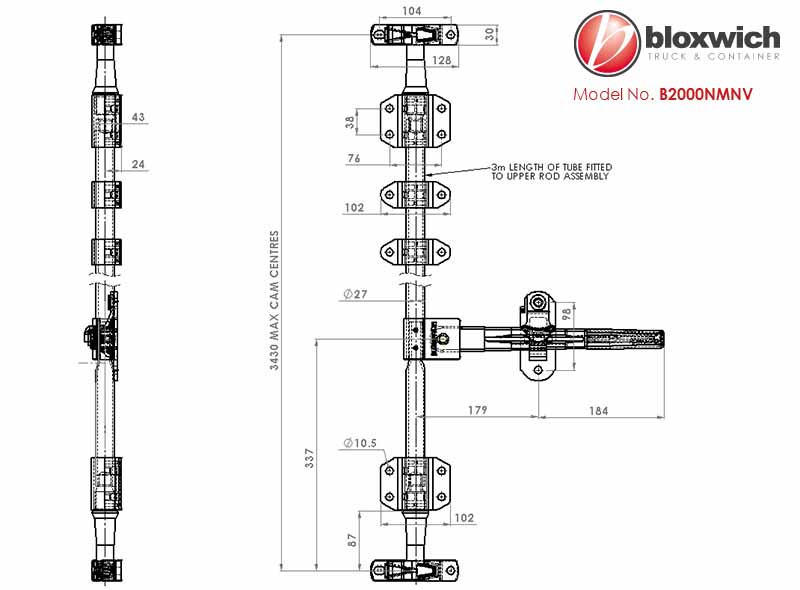

Cam centres dimension controlled by customer by simply reducing length of upper rod assembly. (Max cam centres = 3430). Upper rod assembly supplied with 3m length tube.
We can also supply upper rod assemblies at 3.5-4m, we advise that extra bearing brackets are used, please contact us for details.

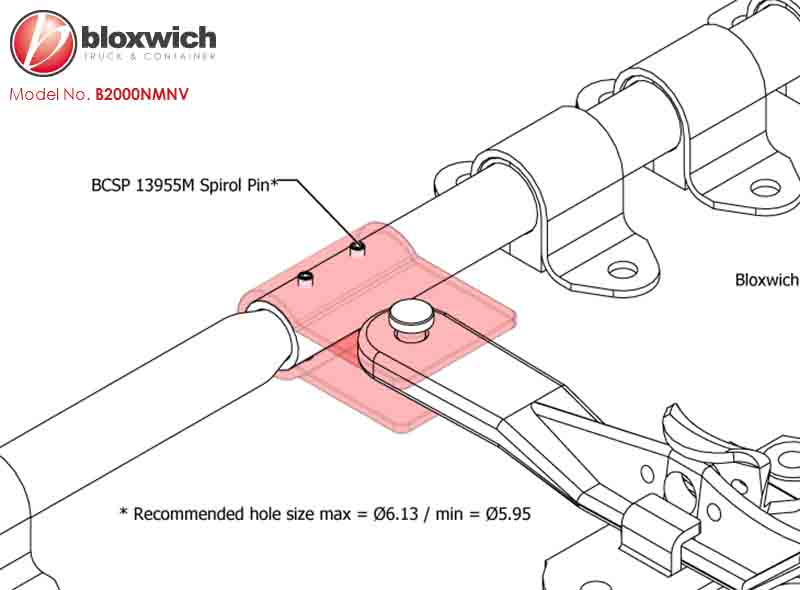

Lower rod assembly spigotted for easy assembly and alignment with upper rod assembly. Handle and hub assembly to be fixed in position by cross-drilling and pinning. * Recommended hole size = Ø6.13 max / Ø5.95 min.
The bearing bracket small (inner and outer if applicable) quantities shown/listed are for reference only, actual quantities are application and customer dependent
Set weight in plastic bag: 10.7 kg Commodity Code 830249 GTIN 5060345314045
Due to the size of this product, at the checkout "Shipping And Handling/Class of Service" page our website defaults to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.
Handles: Forged, D grip, pressed or pressed long.
Only selected fully welded door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
This door gear was the first Bloxwich model to use 22789 cam and 22788 keeper. Designed by Bloxwich circa 1978 and was a modification from BE2000. All Bloxwich part numbers are protected by trademark ®
TM and copyright ©.
Click
HERE to see the full news article on the B2000NMNV door gear history.
Coming soon.
Q) Can I buy a loose kit of parts? A) Yes please contact us to discuss your exact requirements.
Q) Where can I download a lock rod chart? A) Lock rod charts are not available for download yet so please contact us to receive them by email.
Q) I don't need a 3m upper rod assembly so can I get a shorter one? A) Yes please contact us to discuss your exact requirements.
Fixing kit contains 5 M10 x 35 set screw (BCP14887), 13 M10 x 30 set screws (BCP14886), 18 flat washers (BCP14885) & 18 nyloc nuts (BCP14884/G) all are galvanised.
Gasket set contains BCP20110E x 2, BCP20082E x 2, BCP20085E x 2 & BCP13618E x 1
Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
